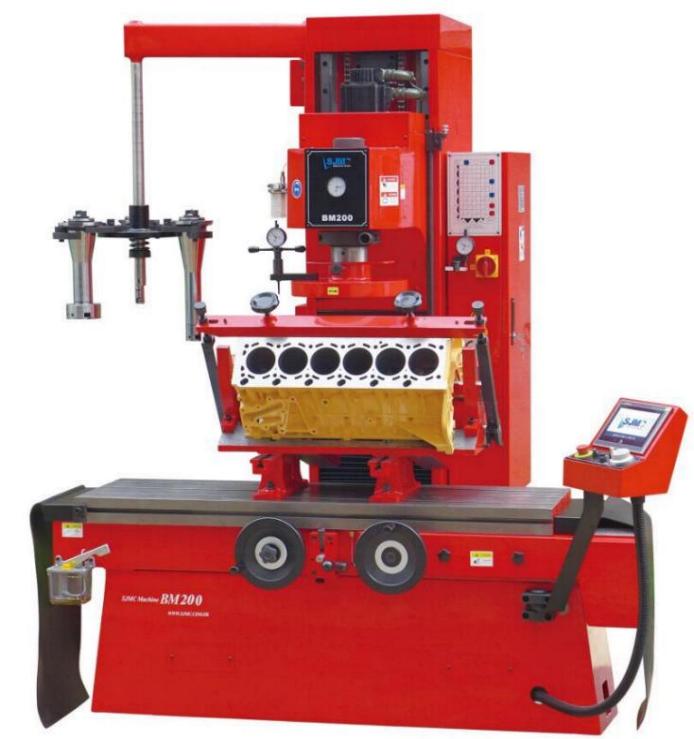

BM200 Cylinder Boring-Milling Machine
The Vertical Fine Boring – Milling Machine BM200 has combined all functions and simple
performance of the traditional Cylinder Boring Machine with the easy-to-operate SJMC EasyTouch control
system. Through the joint operation of the standard mechanical handwheel and the electronic handwheel,
the boring of the cylinder body and the machining of the milling plane can be easily accomplished. With
the excellent EasyTouch system, even a new hand can easily learn to operate the machine. BM200 is
especially suitable for precision work of engine refitted : boring , milling , stepped hole machining , groove
machining guarantee the high consistency of all processing
Model | BM200 | B200 | |
Control System | EasyTouch 3 Axis | Without | |
Boring Capacity | 200 mm | ||
Max. Boring Depth | 350 mm | ||
Max. Milling Area ( L×W ) | 300×900 mm | Without Milling | |
Spindle Speed | 50 ~ 1000 rpm stepless | ||
Spindle Feeding | 10 ~ 900 mm / min（0.01 ~ 0.2 mm / r ） | ||
Rated Torque of Boring at 50-500 rpm | 58 N.M | ||
Rated Torque of Boring at 500-1000 rpm | 22 N.M. | ||
Spindle Traverse | 600 mm | ||
Distance Between Spindle End Face and Work Table | 0 ~ 700 mm | ||
Distance between Spindle Axis and Carriage Vertical Plane | 380 mm | ||
Longitudinal Feeding of Work Table by Electric | 30 ~ 1200 mm / min | Hand Movement | |
Longitudinal Quick Travel of Work Table by Electric | 1200 mm / min | Hand Movement | |
Longitudinal Traverse of Work Table | 1200 mm | ||
Cross Traverse of Work Table | 100 mm | ||
Work Table Size ( L×W ) | 400×1350 mm | ||
Boring Accuracy | H7 | ||
Roundness for Boring | 0.005 mm | ||
Working Accuracy | Cylindricity for Boring | 0.015 mm / 300 mm | |
Flatness for Milling | 0.0127 mm / 305 mm | Without Milling | |
Surface Roughness | Boring | Ra 0.8 | |
Milling | Ra 0.8 | Without Milling | |
Power of Spindle Motor | 2 kW | ||
Motor Power of Work Table Movement | 0.4 kW | Hand Movement | |
Motor Power of Spindle Vertical Movement | 0.4 kW | ||
Overall dimensions ( L×W×H ) | 1870×1600×2000 mm | ||
Package Size | 2200×1450×2250 mm | ||
N.W. | 1900 Kg | ||
G.W. | 2300 Kg | ||
