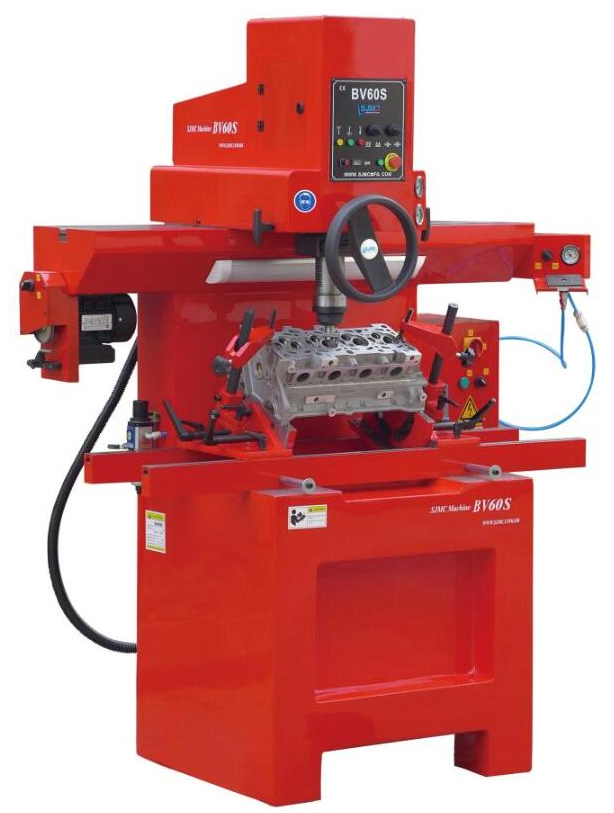

Valve Seats Boring BV60S


Valve Seat Boring Machine Model: BV60S uses a compact design and offers a competitive price with its feature

and accuracy. It can easily process six-cylinder heads and light truck heads on vehicles, however, it works best for

processing cylinder head of motorcycles and middle size, small size yachts. Nowadays, new snow mobiles with

continuous tracks on four-stroke engines, Private jet boats and all-terrain cars all use small valves. BV60S can

process the valve seats accurately. You can have good surface finish with no chatter mark and perfect concentricity

with BV60S.


Main Specifications



Type of Drive   System

Air / Electric

Max. Length of   Cylinder Head of Standard 360°Rollover   Fixture

1000 mm

Max. Width of   Cylinder Head

420 mm

Max. Height of   Cylinder Head

170 mm

Max. Boring   Dia.

16 – 45 mm

Work Head Longitudinal   Floating Travel

870 mm

Work Head Cross   Floating Travel

30 mm

Sphere –   Cylinder Travel

10 mm

Floating   inclination angle of Spindle


Vertical Travel   of Spindle

170 mm

Roughness of   Finishing

Ra 0.6

Power of   Spindle

0.4 kW Servo   Motor

Spindle Speed

20 – 1000 rpm   stepless

Power of Tools   Grinder

0.37 kW

Tools Grinder   Rotation Speed

2800 rpm

Clamper Rotary Angle


Required Rated Air   Pressure

5 Bar / 73 PSI

Required Max.   Air Flow

300 L / Min

Required   Continuous Air Flow

60 L / Min

Overall   Dimension of Machine ( L×W×H )

1350×930×1800 mm

Package Size (   L×D×H )

1900×1330×2100 mm

N.W. / G.W.

850 Kg / 980 Kg
