Air-floating Honing Machine TH170 |
Description

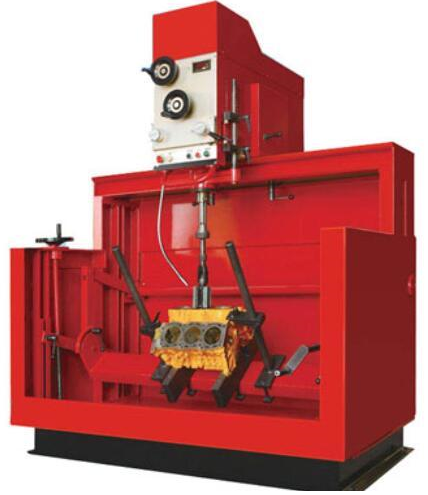

Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal
and transversal positioning on the workpiece. The block supporting base is adjustable in the height and inclination to
allow the assembling of flat and " V " blocks. Honing spindle with steplessly variable ratation speed visuslized on the
control panel.
Technical specifications
Maximum honing diameter
| 170mm |
| Minmum honing diameter with automatic expansion honer | 35mm |
| Honer max. stoke | 300mm |
| Cylinder bearing plate vertical stroke | 200mm |
| Workpiece max. length | 1200mm |
| Cylinder bearing plates width | 400mm |
| Spindle head longitudinal stroke | 1100mm |
| Spindle head transversal stroke | 80mm |
| Spindle head motor | 2HP |
| Hydraulic plant motor | 1.5HP |
| Electropump power | 0.30HP |
| Spindle rotating speed | 100-300rpm |
| Spindle alternative motion speed | 0-18m/min |
| Overall dimensions ( L x W x H ) | 1800 x 1300 x 2200mm |
| Packing dimensions ( L x W x H ) | 2000 x 1500 x 2400mm |
| N.W / G.W | 1200 / 1400kg |
Standard accesories:
1. Low voltage electric plant ( 24 volts )
2. Hydraulic power pack
3. Electropump cooling system ( setting vat )
4. Honing head moving and clamping pneumatic plant
5. V and flat engine-blocks bearing unit ( rotating table )
6. Splash guards and vat ( base plate )
7. Couple of quick clamps
8. Pair of parallel supports
9. Set of service tools
