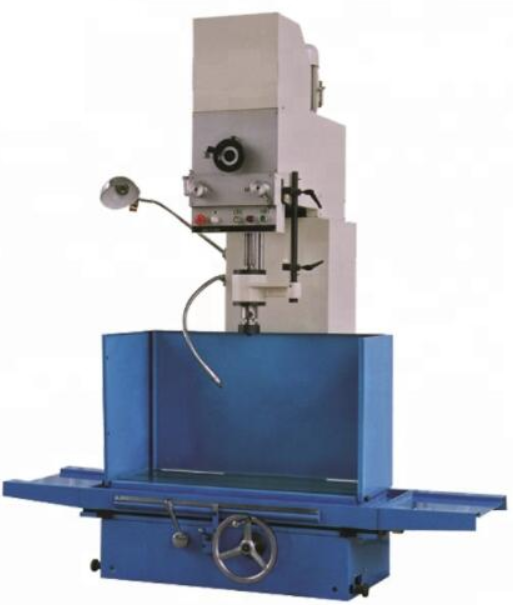

Vertical Honing Machine 2M2217A |
Features:
2M2217A is mainly used for honing holes of cylinder body and sleeve holes
for various engines and other accurate holes.
1.Stepless of spindle turning feeding, reciprocating.
2.The short stroke machine can be used for making the workpiece conveniently.
3.The diameter of the honing head can be varied in the honing process according
to the user need.
Specification:
Model | 2M2217A |
Honing diameter range | Φ40~Φ170mm |
Max. honing depth | 300mm |
Telescopic length of spindle connecting rod | 120mm |
Spindle speeds(four steps) | 130,180,240,365 mm/min |
Spindle alternating motion speed(stepless) | 3~18m/min |
Max. spindle travel | 270mm |
Distance from spindle axis to column vertical plane | 300mm |
Dimensions of the surface | 400x1000mm |
Table longitudinal travel | 800mm |
Machining accuracy(Roundness) | 0.003mm |
Machining accuracy(Cylindricity) | 0.005mm |
Machining accuracy(Roughness) | Ra0.4 |
Overall dimension | 1900x1176x2169 mm |
Packing Size | 1440x1770x2225 mm |
Net/Gross weight | 2500/3000 kg |
