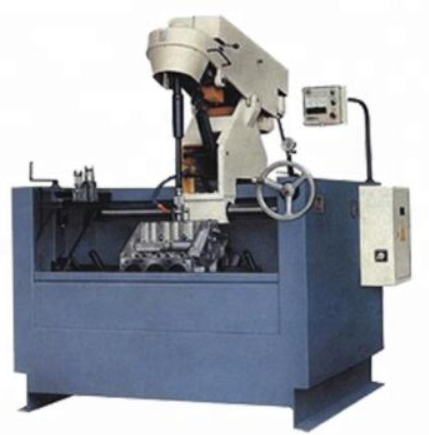

Vertical Honing Machine 3MB9817 |
Feature
The machine is mainly used for honing single line engine cylinders and V-engine cylinders of
automobiles motor cycles and tractors and also for other machine element holes.
1.The machine table can shift of the fixture change 0°, 30°, 45°
2.The machine table is easily up and down manually 0 – 180 mm
3.Reverse precision 0-0.4mm.
4.Select mesh-wire degree 0°– 90°or non-mesh-wire.
5.reciprocating speed of up and down 0-30m/min
6.The machine is reliable performance widely use honing, easy operation and high productivity.
Good rigidity, amount of cutting
Technical parameter
Model | 3MB9817 |
Max. diameter of hole honed | 25-170 mm |
Max depth of hole honed | 320 mm |
Spindle speed (4 steps) | 120, 160, 225, 290 mm |
Stroke (3 steps | 35, 44, 65 s/min |
Power of main motor | 1.5 kw |
Power of cooling pump motor | 0.125 kw |
Machine working inside cavity dimensions | 1400x870 mm |
Overall dimensions | 1640x1670x1920 mm |
Machine weight | 1000 kg |
Standard accessories:
Honing bars, Honing heads MFQ80, MFQ60, Screw plate,
Press blocks, Left and right press bar, Handle, Measure block, Pull springs.
