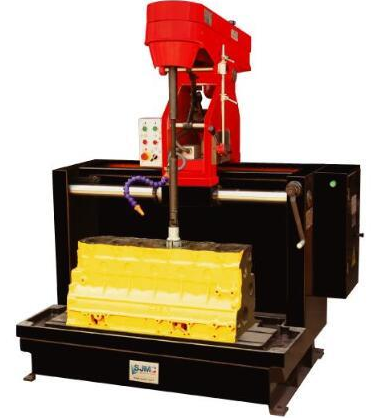

Vertical Honing Machine 3M9814A |
Features:
3M9814A/3MQ9814 Cylinder Honing Machine are mainly used for honing automobile and tractor
cylinders with diameters from 40 to 140 after boring process. The features of the machines are
small in size, light in weight.3M9814A tool proper can be slid longitudinal; 3MQ9814 is simple in
construction, the machine tool proper can be slid crosswise on the table top. They are easy to
operate. The up-and-down reciprocating, motion of which can be adjusted randomly. Honing
process can be carried out after the cylinder block to be honed is placed on the worktable,
adjusted to center position and secured.
Specification:
Model | Unit | 3M9814A |
Dia. of hole honed | mm | 40-140 |
Max. depth of hole honed | mm | 320 |
Spindle speed | r/min | 128;240 |
Max. spindle travel | mm | / |
Longitudinal travel of honing head | mm | 720 |
Spindle lifting and lowering speed (stepless) | m/min | 0-10 |
Power of honing head motor | kw | 0.75 |
Power of oil pump motor | kw | / |
Power of cooling pump motor | kw | / |
Overall dimensions(L*W*H) | mm | 1400*960*1655 |
Net weight | kg | 510 |
