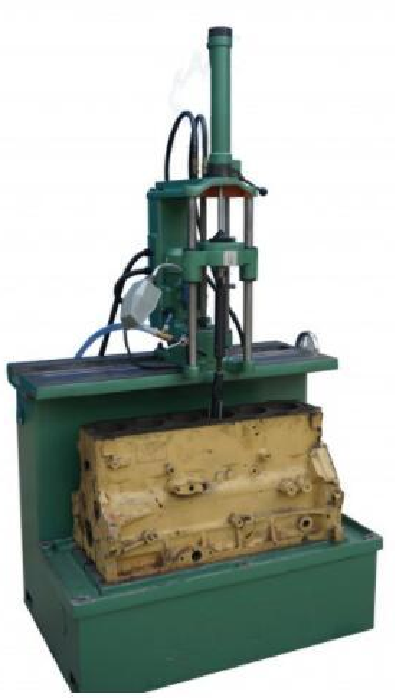

Vertical Honing Machine 3MQ9814 |
3MQ9814 Cylinder Honing Machine are mainly used for honing automobile
and tractor cylinders with diameters from 40 to 140 after boring process.
The features of the machines are small in size, light in weight.3M9814A
tool proper can be slid longitudinal; 3MQ9814 is simple in construction,
the machine tool proper can be slid crosswise on the table top. They are
easy to operate. The up and down reciprocating, motion of which can be
adjusted randomly. Honing process can be carried out after the cylinder
block to be honed is placed on the worktable, adjusted to center position
and secured.
Item | Unit | 3M9814A | 3MQ9814 |
Dia. of hole honed | mm | 40-140 | 40-140 |
Max. depth of hole honed | mm | 320 | 320 |
Spindle speed | r/min | 128;240 | 125;250 |
Max. spindle travel | mm | / | 340 |
Longitudinal travel of honing head | mm | 720 | / |
Spindle lifting and lowering speed (stepless) | m/min | 0-10 | 0-14 |
Power of honing head motor | kw | 0.75 | 0.75 |
Power of oil pump motor | kw | / | 1.10 |
Power of cooling pump motor | kw | / | 0.12 |
Overall dimensions(L*W*H) | mm | 1400*960*1655 | 1290*880*2015 |
Net weight | kg | 510 | 510 |
