Protable Honing Machine SHM100 |

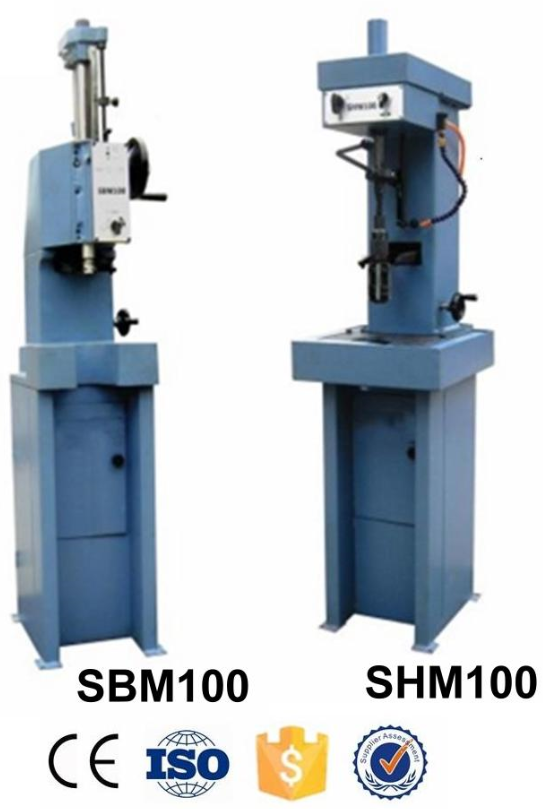

Boring Machine for Motorcycle Cylinders SBM100
Application and features:
*The boring machine is used for reboring engine cylinders of automobiles motorcycles and middle & small tractors
*Reliable performance ,widely use, processing accuracy high productivity
*Easy operation, high efficicency
*Good rigidity, amount of cutting
Model | SBM100 |
Max. Boring Diameter | 100mm |
Min. Boring Diameter | 36mm |
Max. Spindle stroke | 220mm |
Distance between upright and spindle axis | 130mm |
Min. distance between fastening brackets and bench | 170mm |
Max. distance between fastening brackets and bench | 220mm |
Spindle speed | 200rpm |
Spindle feed | 0.76mm/rev |
Motor power | 0.37/0.25kw |
Honing Machine for Motorcycle Cylinders SHM100
The boring machining is mainly used for reboring engine cylinders of for Automotive, Light Truck,
Motorcycle, Marine & Small Engine Applications.
Model | SHM100 |
Max. Honing Diameter | 100mm |
Min. Honing Diameter | 28mm |
Max. Spindle stroke | 185mm |
Distance between upright and spindle axis | 130mm |
Min. distance between fastening brackets and bench | 170mm |
Max. distance between fastening brackets and bench | 220mm |
Spindle speed | 125/250rpm |
Main Motor power | 0.37/0.18kw |
Coolant system motor power | 0.04kw |
