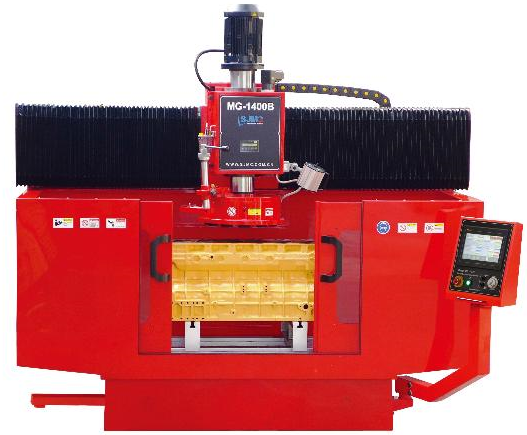

CNC grinding and milling machine for cylinder heads and blocks Model: MG-1400B It is new solution for medium and large size engine reconditioning needs. The Grinding head longitudinal moving and vertical moving are controlled by servo motor with high precision ball screws, the vertical moving is also equipped DRO. & linear scale for grinding/milling feed. The spindle speed can be controlled from 150 to 1400 rpm, so that the machine can be used for any type of machining application (milling and grinding) and material, thus providing extremely high quality surfacing without increased cycle times. Features: The surface grinding-milling machine, model MG-1400B is a medium size wet grinding machine which with its sturdy and well proportioned design offers a lot of advantages within small and medium size engine reconditioning as well as industrial grinding.The fact that the stability of the machine is constant regardless of the height of the item to be ground assures optimum stock removal and grinding result.·Spindle motor and traverse motor are inverter motor ( stepless speed) with easy operation and anti-vibration(resonance can be avoided);
Main specifications
|
