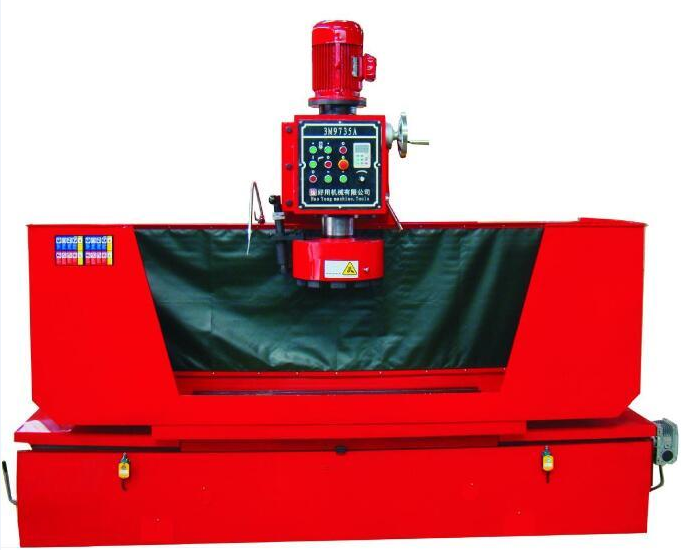

3M9735AX130 |
Feasures:
1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.
2. The table movement of this machine is driving by gear motor and ball screw , stepless speed frequency
control, convenient and stable adjustment.
3. coupled with special fixtures to achieve multi-angle grinding cylinder and head.
4. The casting part of this machine is resin sand casting, deformation is small neat appearance.
Technical parameter:
Model | 3M9735A×130 | 3M9735A×150 |
Worktable size | 1300mm*500mm | 1500mm*500mm |
Max length of processing | 1300mm | 1500mm |
Max width of processing | 350mm | 350mm |
Max height of processing | 600mm | 800mm |
Spindle box travel | 70mm | 70mm |
Number of segments | 10pcs | 10pcs |
Grinding disc diameter | 350mm | 350mm |
Spindle speed | 700/1400r/min | 700/1400r/min |
Overall dimensions | 2800*1050*1700mm | 2800*1050*2100mm |
Packing dimenstions | 3100*1150*2150mm | 3100*1150*2150mm |
N./G.weight | 2500/2800kgs | 2500/3000kgs |
Standard accessory:
Psrallel support A,,Psrallel support B, Psrallel support C, Grinding disk,Grinding wheel dresser,
Cooling box,Grinding tiles&milling cutters. Wheel balance stand arbor.
Optional accessory:
Diamond dresser, Universal support
