3M9735BX150 |

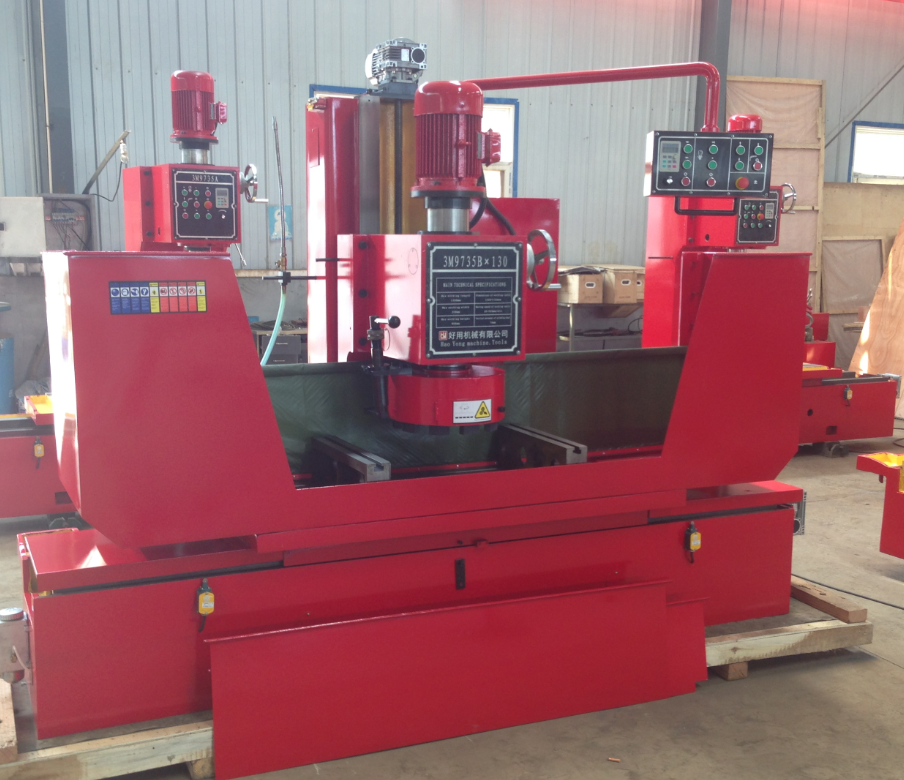

1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.
2. The table movement of this machine is driving by gear motor and ball screw ,
stpeless speed frequency control, convenient and stable adjustment.
3. Coupled with special fixtures to achieve multi-angle grinding cylinder and head.
4. The casting part of this machine is resin sand casting, deformation is small neat appearance.
Main Specification:
1 | MODEL | 3M9735Ax130 | 3M9735Ax150 | 3M9735Bx130 | 3M9735Bx150 |
2 | Workbench dimension: | 1300X500mm | 1500X500mm | 1300X500mm | 1500X500mm |
3 | Max working length | 1300mm | 1500mm | 1300mm | 1500mm |
4 | Max working width | 350mm | 350mm | ||
5 | Max working height | 600mm | 800mm | 600mm | 800mm |
6 | spidle box travel | 70mm | 800mm | ||
7 | number of segments | 10piece | 10piece | ||
8 | Emery wheel disk diameter | 350mm | 350mm | ||
9 | The speed of revolution of main motor | 1400/700r/min | 1400/700r/min | ||
10 | N.W/G.W | 2.5T/2.8T | 2.5T/3.0T | 2.5T/2.8T | 2.5T/3.0T |
11 | Outline dimension | 3100X1150X2150mm | 3100X1150X2150 | 3100X1150X2150mm | 3100X1150X2150 |
