T8115VF

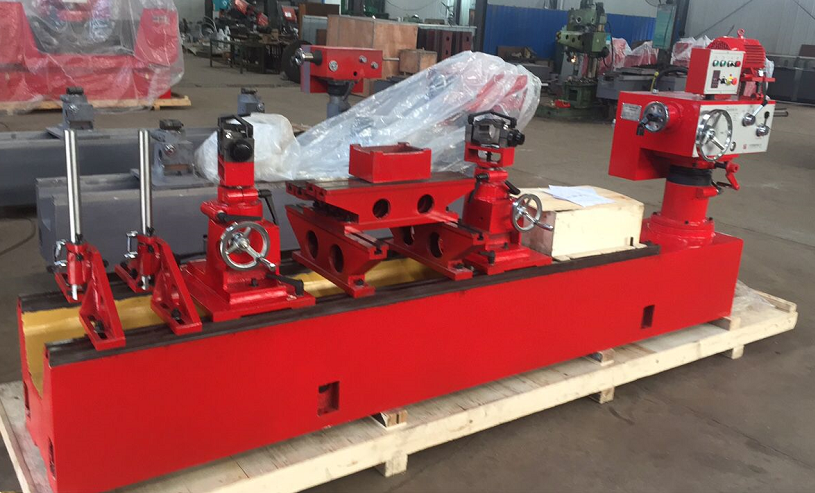

T8115VF  line boring machine
Introduction:

1. Big feeding disctance， improve work efficiency.

2. Hardened spindle, give high hardness and good rigidity.

    Improve  the working accuracy.

3. Stepless speed suitable for different hole and materials.

4. Special measuring gauge can improve working effciency and working accuracy.

Model

T8115VF

T8120VF

Range of hole diameter to be bored

φ36-φ150mm

φ36-φ200mm

Max length of cylinder body to be bored

1600mm

2000mm

Main shaft max length

300mm

300mm

Main shaft rorationg speed

30-500rpm

30-500rpm

Boring rod feed quantity

0.044,0.167mm/r

0.044, 0.167mm/r

Motor power

1.5kw

1.5kw

Overall dimensions

3500x800x1500mm

3900x800x1500mm
