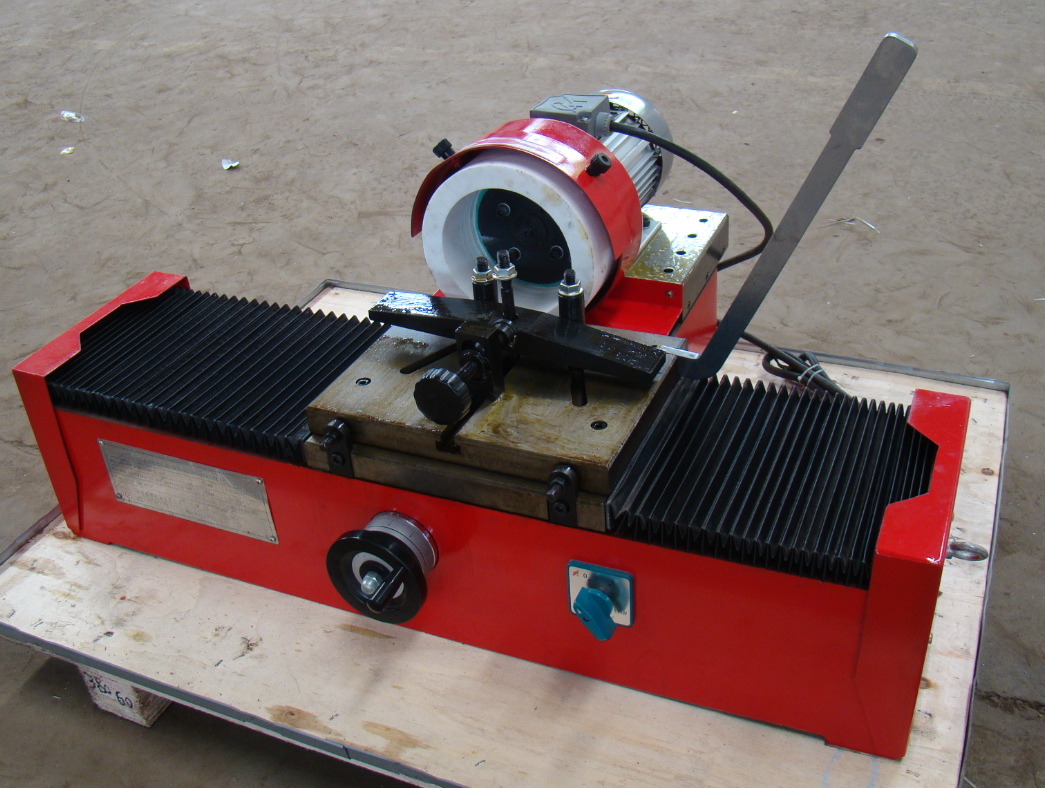

Con-rod and Cap End Face Grinder DM100 |
Feature:
Longitudinal movement of grinding head with guide screw. Precise and convenient control of
grinding removal by turning the handwheel with scales. The shim plate can be slightly adjusted
to accurately regulate the degree of parallelism between the grinding face of workpiece and
the end-face of grinding wheel so that the processing requirements can be fully satisfied with
a high precision of grind. The lateral shifting of the trailing bar adopts the gear-rack structure
to adapt to different grinding speeds, with an easy operation.
Model | DM100 |
Max. outside dimension of cap | Φ 275 mm |
Maximum thickness of the connecting rod | 100 mm |
Motor power | 0.75 Kw |
Overall dimensions(L x W x H) | 920x750x350 mm |
Packing dimensions(L x W x H) | 1360x890x620 mm |
N. W. /G. W. | 150/180 kg |
