Con-rod and Cap End Face Grinder DM50 |
Cap Rod Grinding Machine DM100,DM50
Cap and rod gringding machine is mainly used when grinding the connecting rod and its end faces for the engines of automobile,tractors and so on..
Longitudinal movement of grinding head with guide screw. Precise and convenient control of grinding removal by turning the handwheel with scales.
The shim plate can be slightly adjusted to accurately regulate the degree of parallelism between the grinding face of workpiece and the end-face of
grinding wheel so that the processing requirements can be fully satisfied with a high precision of grind. The lateral shifting of the trailing bar adopts
the gear-rack structure to adapt to different grinding speeds, with an easy operation.
Features:
1. Table cross travel movements by linear guides,easy to operate.
2. Table can be adjusted+0.3°,to meet the job requirments.
3. Cross feed grinding,high precison screw,,Ensure accuracy
4. Cabinet optional tools

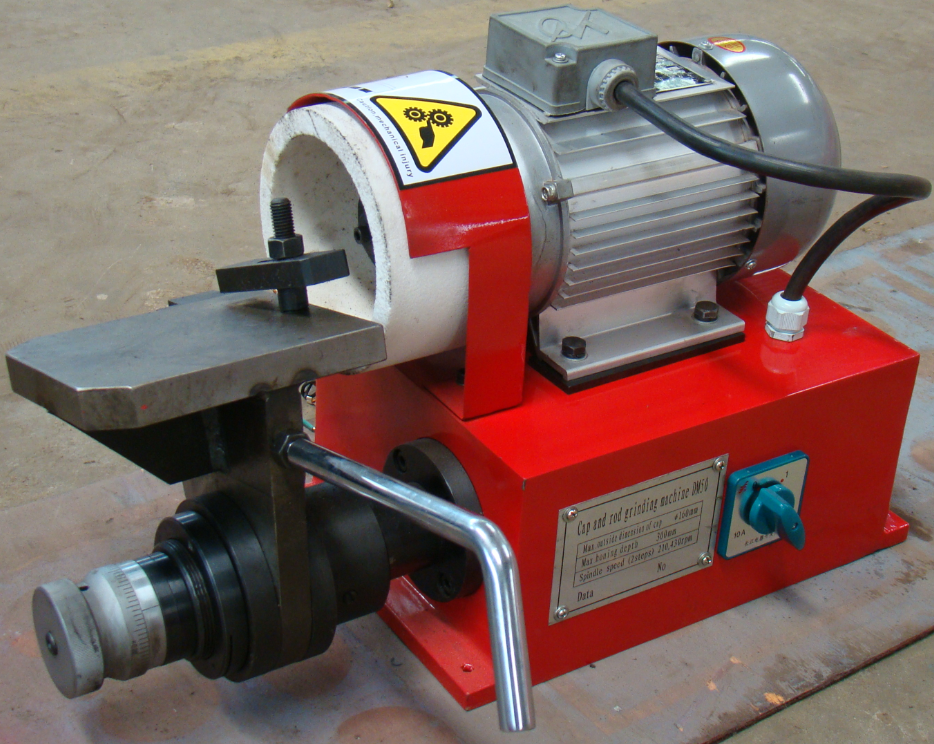

The DM50 is small size , light weight , and simple construction , it is easy moving , easy operating , dependable precision , it is a very good economic and suitable for user
Model | DM100 | DM50 |
Max inside dimension of cap | 275mm | 160 mm |
Max thickness of the connecting rod | 100mm | 50mm |
Grinding wheel speed | 2800rpm | 2800rpm |
Main motor power | 0.75KW | 0.75KW |
Overall dimensions(L*W*H) | 920*750*350mm | 520*350*310mm |
Tool cabinet dimenstion(L*W*H) | 960*580*665mm | |
Packing dimensions(L*W*H) | 1360*890*1200mm | 650*380*420mm |
N/G Weight | 150/180kgs | 35kg/45kgs |
