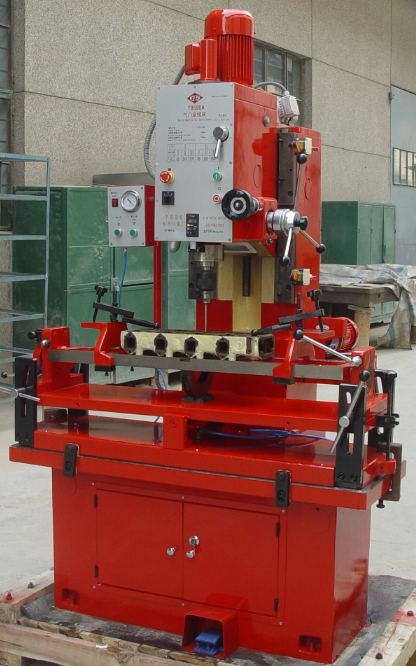

T8590A Gas Valve Seat Boring Machine
Introduction
The machine tool suits the needs of various cylinder cover for every engine. It can manufacture the gas
valve seats hole for cylinder cover with various angles .When equipped with boring-drilling tools,it
can bore,drill,ream the pipe seats hole for gas valve or repair it.
Characteristics
1.Its adopted haver working date and special rptatable slide.
2.It can be widelu used with many knives and di.
3.Its rapide-checking and non-pollutioning.
4.Knives can be multi-used.
5.It is suitable for boring lathing.
6.It meets mater heads of all sorts.
Model | T8590A |
Dimension of machine (length * width * height) | 1300X800X1900mm |
Dimension of worktable | 1280X790X700mm |
Dimension of clamp body | 1240X360X390 |
Travel of principal axis | 180mm |
Distance of principal axis to front end plane of slide rail | 290mm |
The Max distance of principal axis end to the surface of worktable | 720mm |
Moving diatance of clampdy | Transverse: 870mm longitudinal 125mm |
Angle of oscillation of support | 0-8° |
Max boring diameter | φ90mm |
Minimal boring diameter | φ20mm |
Taper vent of principal axis | Morse No.4 taper |
Speed of revolution of principal axis |
Variable frequency infinitely adjustable-speed |
Principal motor | 1.1KW 1000/1500r/min |
Vacuum pump | 180W limiting pressure 6pa |
Cutter grinder | 250W 2800r/min diameter of emery wheel φ125mm |
Net weight of machine | 1200kg |
Gross weight | 1400kg |
Dimension of package box | 2200X980X2150mm |
