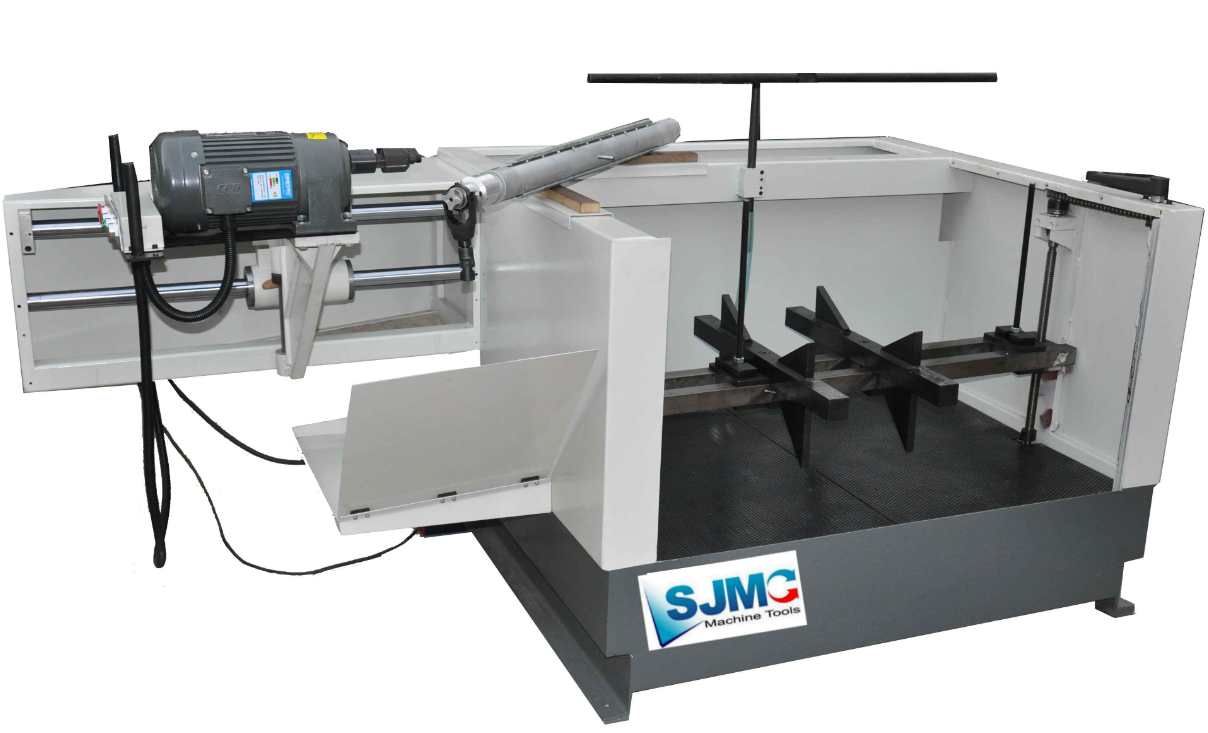

Line Honing Machine LBH1100 |
MACHINE SPECIFICATIONS
Main Bearing Bore Diameter Range: 46 – 178 mm (1.800 – 7.000 in) Special tooling required for 127 – 178 mm (5.000 to 7.000 in)

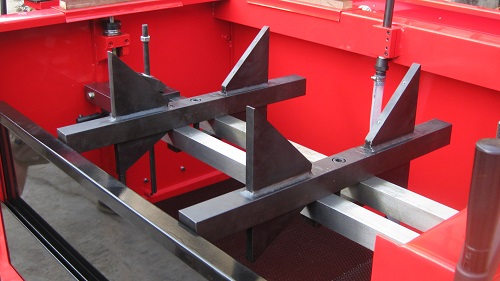

Capacity: V blocks, both 90 and 60; overhead and L-head in-line blocks; up to 1140 mm (45 in) long, 710 mm (28 in) from head deck to main bearing centerline.
FEATURES & BENEFITS
Minimum stock removal, usually less than .003" (.076 mm) off the caps compared to as much as .010" (.254 mm) with boring
Maximum precision, corrects distortion caused by warpage and cap stretch
Meets or exceeds original factory accuracy for alignment, roundness and size
Fast, easy setup
Ease of operation, no special training required
Profitable: Make $90-$120 in 30 minutes on a typical V-8 block
Lifetime application service with every machine purchase
Hone Unit Selection
COMPLETE HONE UNIT | REPLACEMENT STONES & SHOES | |||||||
HONE UNIT | APPROX. SHIP. WEIGHT | DIAMETER RANGE | COMMENTS | STONES (5 per Box) Ship Wt. 1 1/4lbs (0,57 kg) per Box | SHOES (5 per Box) Ship Wt. 2 lbs (0,9 kg) per Box | |||
lbs. | kg | inches | millimeters | RY24-J49 | RG-D | |||
10RY-1800F | 34 | 15,4 | 1.800 - 2.100 | 46 - 54 | Hone Unit includes 1 set of 10 stones and 20 shoes | RY24-J49 | RG-D | |
10RY-2100F | 45 | 20,4 | 2.100 - 2.400 | 54 - 61 | RY24-J49 | RG-D | ||
10RY-2400G | 40 | 18,1 | 2.400 - 2.700 | 61 - 69 | RY24-J49 | RG-D | ||
10RY-2700G | 45 | 20,4 | 2.700 - 3.000 | 69 - 77 | RY24-J49 | RG-D | ||
10RY-3000H | 50 | 22,6 | 3.000 - 3.500 | 77 - 89 | RY24-J49 | RG-D | ||
10RY-4500H | 60 | 27,2 | 4.500 - 5.000 | 115 - 127 | RY24-J49 | RG-D | ||
15RY-3500H | 85 | 38,5 | 3.500 - 4.000 | 89 - 102 | Hone Unit includes 1 set of 15 stones and 30 shoes | RY24-J49 | RG-D | |
15RY-4000H | 105 | 47,6 | 4.000 - 4.500 | 102 - 115 | RY24-J49 | RG-D | ||
15RY-4500H | 120 | 54,4 | 4.500 - 5.000 | 115 - 127 | RY24-J49 | RG-D | ||
10RY-5000H | 70.5 | 32,0 | 5.000 - 5.500 | 127 - 140 | Hone Unit includes 1 set of 10 stones and 20 shoes | RY24-J49 | RG-D | |
10RY-5500H | 80.5 | 36,6 | 5.500 - 6.000 | 140 - 152 | RY24-J49 | RG-D | ||
10RY-6000H | 97 | 44,1 | 6.000 - 6.500 | 152 - 165 | RY24-J49 | RG-D | ||
10RY-6500H | 113.5 | 51,6 | 6.500 - 7.000 | 165 - 178 | RY24-J49 | RG-D | ||
15RY-5000H | 107 | 48,6 | 5.000 - 5.500 | 127 - 140 | Hone Unit includes 1 set of 15 stones and 30 shoes | RY24-J49 | RG-D | |
15RY-5500H | 122 | 55,4 | 5.500 - 6.000 | 140 - 152 | RY24-J49 | RG-D | ||
15RY-6000H | 147 | 66,8 | 6.000 - 6.500 | 152 - 165 | RY24-J49 | RG-D | ||
15RY-6500H | 172 | 78,2 | 6.500 - 7.000 | 165 - 178 | RY24-J49 | RG-D | ||
