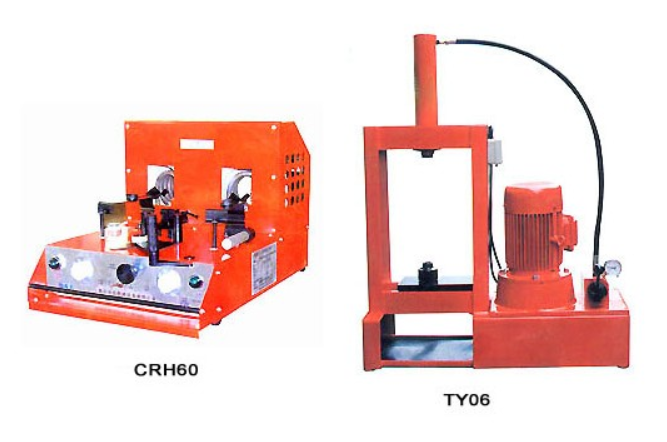

Con-Rod Heater & Press CRH60/TY06 |
In the process of rebuilding engine , we often need to take out pin and put it back , this is the seemingly
simple job , but it won't be so easy in practice , especially in the pin joining a piston to a connecting rod ,
the portable hydraulic press TY06 and the Rod heater CRH60 are best way for this job .
TY-06 and CRH60 often used in combination , they are wide-range of applications ,powerful functions ,
from single cylinder of lawnmower ’s small gasoline engine to diesel engine of large construction machinery ,
they were competent..
Model : CRH60
This instrument is mainly used in uniformly heating and expanding pin-hole on connecting rod of vehicle engine,
and it also equipped with fast assembling mechanisms for connecting rod, pin and piston, which can keep
conformed position and size of assembled connecting rod, pin and piston. In addition, it can be used to heat,
enlarge and assembly other machinery parts.
Model : TY06
The machine is suitable for small parts insert installation and teardown, easy for operation with dexterity and
high efficacy, is a small table hydraulic pressure machine. It’s special used for the teardown of the connecting
rod and pin, copper sleeve for the car engine.
Main specifications
Model | Unit | CRH60 |
Maximum heating diameter | mm | Φ60 |
Maximum heating depth | mm | 60 |
Voltage (Single phase) | V | 220 |
Time-control scope | minutes | 0~15 |
Overall dimensions (L×W×H) | mm | 500×430×440 |
Packing dimensions (L×W×H) | mm | 550×500×500 |
N.W. / G.W. | kg | 25 / 32 |
Main specifications
Model | Unit | TY06 |
Spindle travel | mm | 0-200 |
Rating press | Kn | 60 |
Motor power | Kw | 2.2 |
Voltage | V | 3-380 |
Frequency | Hz | 50 |
Overall dimensions(L×W×H) | mm | 770×350×1100 |
Packing dimensions(L×W×H) | mm | 1010×430×930 |
N.W/G.W. | kg | 200/220 |
