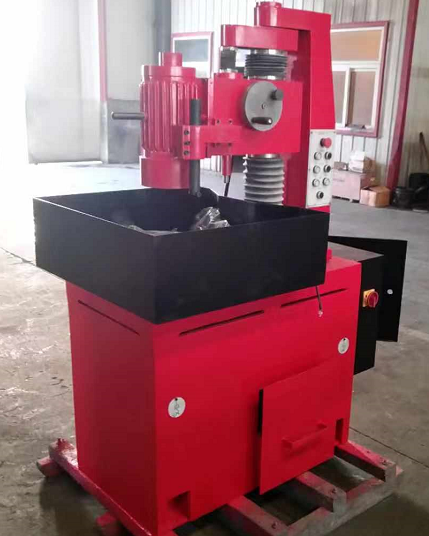

Flying Wheel Grinder FG500 |
Features:
Use and performance of the vehicle repair industry is grinding to repair the vehicle flywheel
special machine tools, has a simple structure and reliable performance characteristics such
as grinding may be less than the diameter of the fly wheel 500mm ,The rigid machine tool
performance, the work of high precision, fast speed, processing efficient, simple and
convenient maintenance is and ideal tool for special flywheel grinding.
The type of grinding machine Tool grinder.
Specification:
Model | FG500 |
Table Diameter | 450mm |
The Max diameter of repairing Flywheel | 500 mm |
The Max Distance from spindle to table | 200mm |
Rotational Speed of Grinding wheel | 2800r/min |
The rotational speed of table | 17/34r/min |
The motor of grinding wheel | 3 kw/400V/50HZ |
The motor of table | 1400/700r/min 0.4/0.22KW/400V/50HZ |
Cooling pump | 0.12KW |
Overall dimensions | 1200X800X1750(mm) |
