LB1000 |

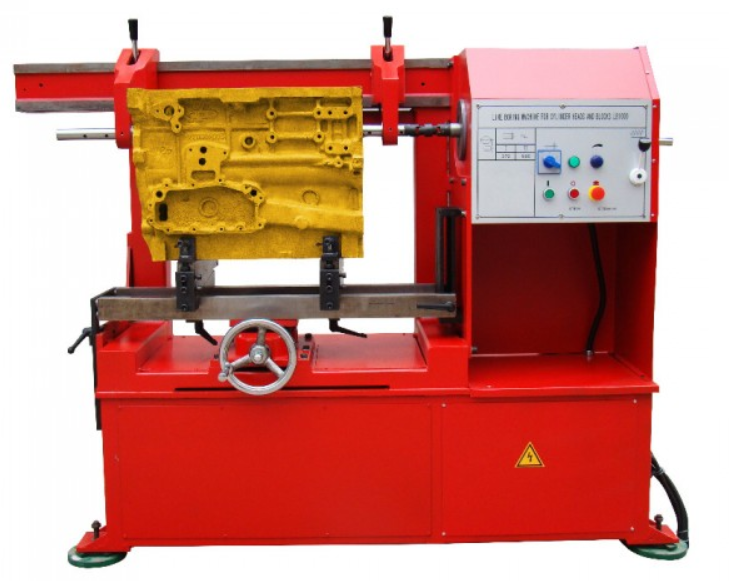

This machine was specially designed for boring Middle & Small engine blocks, crankshaft bush and camshaft
bush; It also can be used for con rod bush with special fixture. The boring carriage adopts guideway moving,
center of main shaft already adjusted in advance, vertical column go up and down, Make the work piece to find
positive and accurate. Good rigidity, spindle feeding stepless, boring with high accuracy. It purposed used in
automotive service and repair filed.
Model | LB1000 |
Boring range | Φ24-Φ110mm |
Max. distance between parallel & shaft center | 450mm |
Max. length of workpiece | 1000mm |
Max. movement of main shaft | 100mm |
Spindle speed | 580,373r/min |
Feeding of boring shaft | stepless |
Main motor power | 0.75/0.55KW |
Overall dimension ( L x W x H) | 1850×600×1375mm |
Packing size ( L x W x H) | 1980×750×1700mm |
Weight | 600kg |

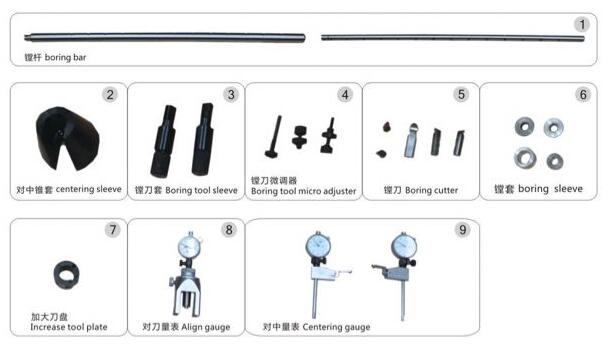

Standard Accessories:
1.Boring bar
2.Centering sleeve
3.Boring tool sleeve
4.Boring tool micro adjuster
5.Boring cutter
6.Boring sleeve
7.Increase tool plate
8.Align gauge
9.Centering gauge
