VR90 |

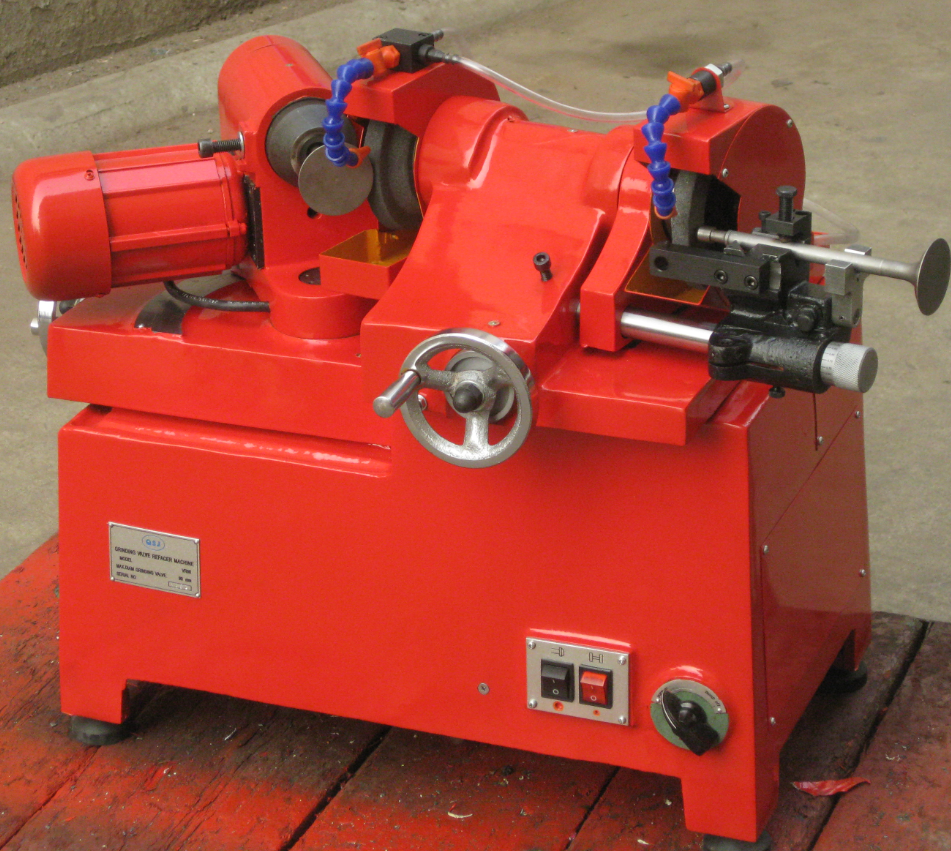

3M9390 Valve grinder is specially designed for automobile repairing factories and agricultural
machinery repairing centres. It is compact and light weight, with simple construction and easy
operation. It is necessary equipment for automobile repairing service.
Main specifications
Model | VR90 | |
Max. grinding diameter | Φ90 mm | |
Range of grinding valve diameter | Φ20-Φ90 mm | |
Valve axle diameter | Φ4-Φ18 mm | |
Grinding angle | 25°-60° | |
Longitudinal slide travel of work head | 110 mm | |
Cross slide travel of wheel head | 90 mm | |
Spindle speed | 125RPM | |
Motor | Grinding head | 0.37kw |
Chuck | 0.09kw | |
Overall dimensions (L×W×H) | Machine | 630×410×500 mm |
Machine with cabinet | 630×410×1000 mm | |
Packing dimensions(L× W×H) | Machine | 740×540×640 mm |
Machine with cabinet | 740×540×1140 mm | |
N.W./G.W. | Machine | 88/125 kg |
Machine with cabinet | 128/165kg | |
Optional Accessories
1. Spindle Collet 14-18mm
2. Spindle Collet 4-7mm
3. Wheel balance stand
4. Tool cabinet
