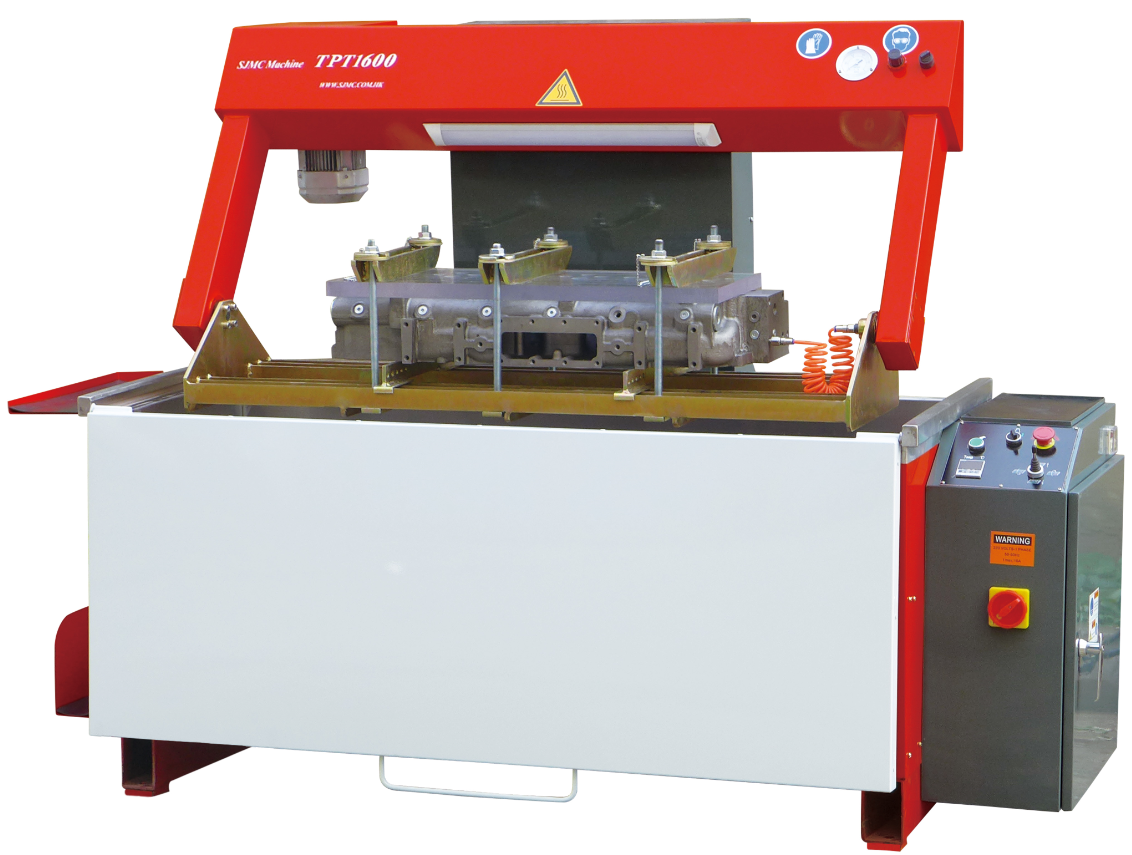

TPT1600 |

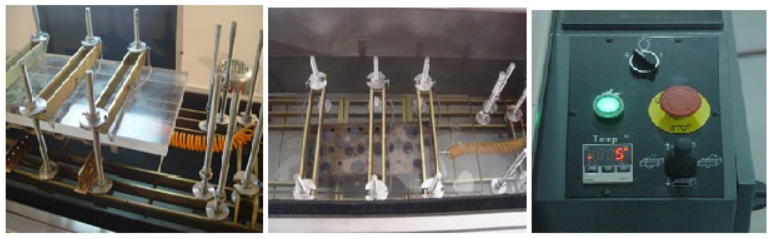

Easy and efficient pressure test of cylinder head and cylinder block coolant circuits. Quick and
easy clamping system allowing tests at a pressure of 4 to 5bar.
* 360° Electric powered roll-over fixture.
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control.
* Low voltage: 24V operating control.
* Electronic adjustable thermostat.
* Heating programmer: daily or weekly.
Part Characteristics | Specification |
Maximum length （mm/inch） | 1200 mm / 47.24” |
Maximum width (mm/inch) | 400 mm / 15.74” |
Maximum height (mm/inch) | 300 mm / 11.81’’ |
Capacity of stainless steel tank | 500liters / 132 USngal |
Heating elements (kw) | 2x4.5 |
Hydraulic hoist (kw) | 0.37 |
Gear-motor (kw) | 0.25 |
Rotational speed (tr/min) | 4 |
Up and down travel time (mm/inch in 10sec) | 600mm/23.62 |
Thermostat （ °C ） | 0-70 |
Power supply | 400 V 3 PH + Ground （no neutral） |
Net weight approx (kg/lbs) | 480/1058 |
Length(mm/inch) | 2000 mm / 78.75” |
Width (mm/inch) | 1050 mm / 41.34” |
Height (mm/inch) | 1700 mm / 67” |
