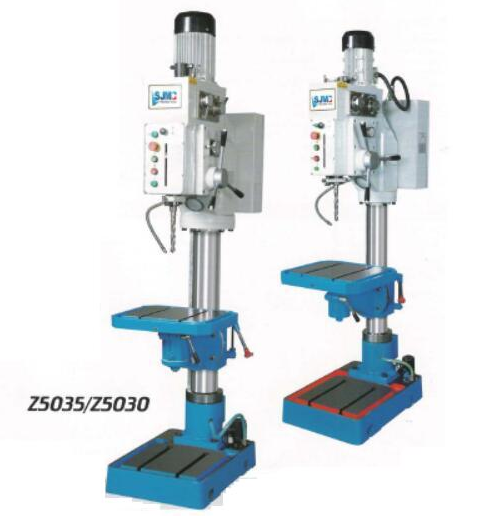

Z5035 / Z5030 |
VERTICAL ROUND COLUMN DRILLING MACHINE FEATURES:
1.New-designed,pleasing appearance,compact construction,wide speed change range,easy to operate.
2.Easy operation with its unique workable, and both motor-drive(Z5035) and manual-operated lifting service.
3.The working table can be rotated 180°and can be tilted ±45° also,it is reliable and easy job can be done.
4.Equipped with coolant system and tapping mechanism.
5.Equipped with shortcut and overload protection,its electrical system with powerful spindle motor,it designed according to IEC standard.
6.Characteristic protection device is safe and reliable.
7.Ideal choice for single pic ,small batch and mass production for drilling,counter boring,reaming,tapping,spot facing,etc.
ITEM | UNIT | Z5035 | Z5030 |
Max. Drilling capacity | mm | 35 | 30 |
Max. Tapping capacity | mm | M24 | M20 |
Diameter of column | mm | 140 | 120 |
Spindle travel | mm | 160 | 135 |
Distance spindle axis to column generating line | mm | 330 | 320 |
Max. Distance spindle nose to table | mm | 590 | 550 |
Max. Distance spindle nose to base | mm | 1180 | 1100 |
Spindle taper | MT4 | MT3 | |
Spindle speeds range | r/min | 75~2500 | 65~2600 |
Spindle feeds series | 12 | 12 | |
Spindle feeds | mm/r | 0.1 0.2 0.3 | 0.1 0.2 0.3 |
Dimension of workable surface | mm | 500*440 | 500*440 |
Table travel | mm | 550 | 490 |
Dimension of base table | mm | 400*390 | 400*390 |
Overall height | mm | 2300 | 2050 |
Main motor | kw | 1.5/2.2 | 1/1.5 |
Coolant motor | w | 40 | 40 |
G.W/N.W | kg | 670/600 | 500/440 |
Packing dimension | cm | 108*62*230 | 108*62*215 |
