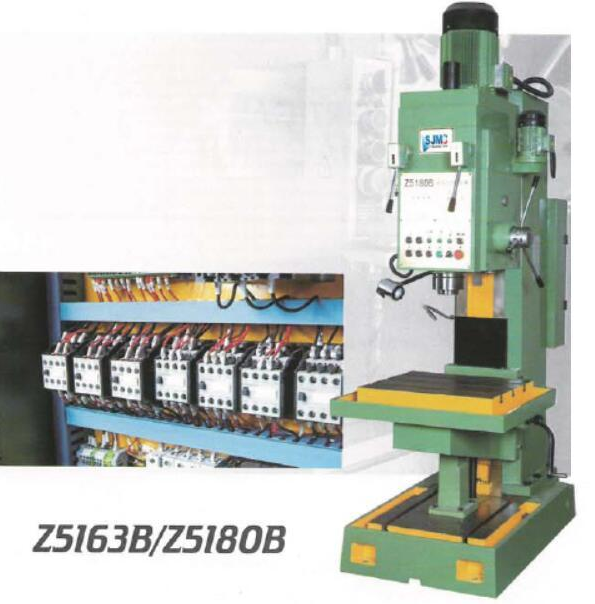

Z5163B Z5180B |
SQUARE COLUMN VERTICAL DRILLING MACHINE:
Square-column vertical drilling machine is a universal general-purpose machine. Its used for counter-sinking,
spot-facing drilling, tapping, boring, reaming, etc.
The machine has catch the function of tap-automatically reversing device which is suitable for tapping of blind
and determined holes.
The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls
good looking appearance, easy maintenance and operation.
MODEL | Z5163B/Z5180B |
the largest hole diameter (mm) | 63/80 |
the largest feed resistance (N) | 30000 |
the maximum allowable torque spindle (Nm ) | 800 |
main electrical Power (KW) | 5.5/7.5 |
Throat depth (mm) | 375 |
Spindle taper | MT5/MT6 |
Spindle stroke (mm) | 250 |
Headstock travel (manual) (mm) | 250 |
Spindle speed range (level) (r / min) | 40-570 (9) |
feed rate (level) (mm / rev) | 0.1 - 0.78 (6) |
the largest table travel (mm) | 300 |
Table working area (mm) | 650X550 |
spindle face to the work of table maximum distance (mm) | 800 (1250) |
Machine dimension (length X width X high) (mm) | 965X1452X2787 |
Machine NW / GW (kg) | 1850/1935 |
Packing Size (length X width X high) (cm) | 285X111X194 |
