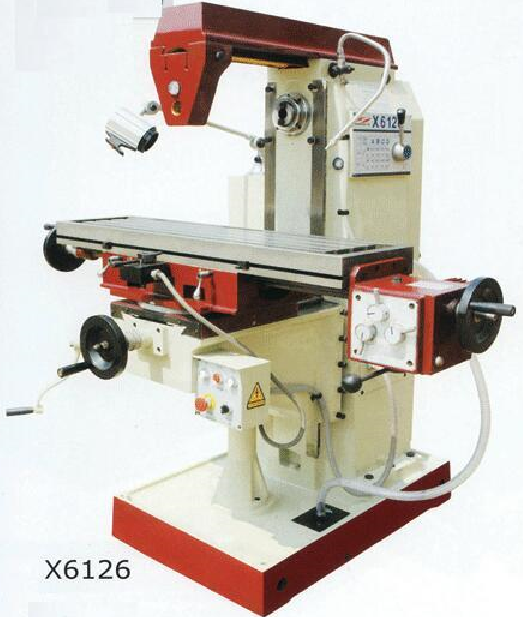

X6126 |
Vertical milling machine
1.Totary table and head 45 degree
2.Vertical milling can use with a milling head
3.Mechnical power feed on X axis,
4. Horizontal universal milling machine X6128 with auto feed on X,Y,Z axes.
Item | X6128 | X6126 |
Spindle taper | MT4,R8,ISO30,ISO40 | MT4,R8,ISO30,ISO40 |
Distance from spindle center to vertical guideways | 240 | 20-310 mm |
Distance from spindle to table surface | 20-310 | |
Spindle speed range(Vertical/Horizontal) | 60-2600(8step)/40-1800(8step) | 60-2600(8step V)/40-1800(8step H) |
Table size | 1120×280 | 1000x260 mm |
Table travel | 650×230×450 | 600x230x450 mm |
Main motor power | 1.5 | 1.5 kw |
Rotary angle of worktable | ±45° | |
Speed of table feed | X:45-450 | 24-720 mm/min |
Y:24-450 | ||
Z:8-140 | ||
N.W/G.W | 900/1000 | 900/1000 KG |
