X6036A |

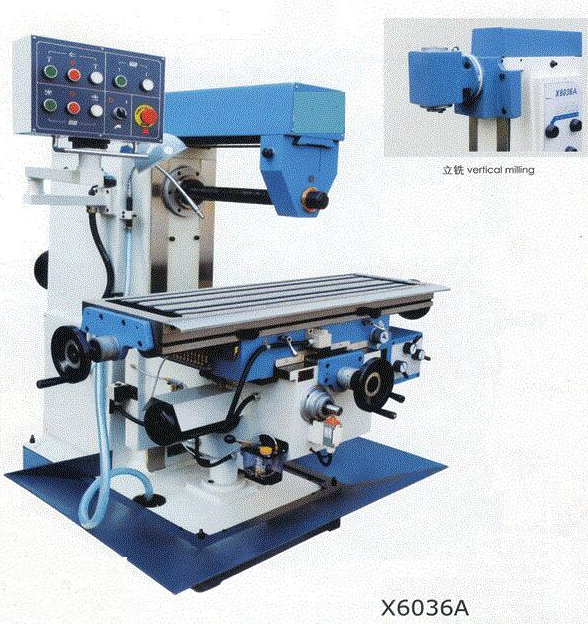

Knee Type Universal Horizontal Milling Machine X6036A
Item | X6036A/X6136A |
Spindle taper | ISO50(H) |
Distance from spindle to table | 0-400mm |
Spindle speeds | 60-1800r.p.m(H) |
Table size | 1250×360mm |
Table travel(Horizontal/Cross/Vertical) | 600/320/400mm |
Feeding range of longitudinal.cross travel | 22-555nn/min(8) |
X,Y-axis rapid feed speed | 1080mm/min |
Z-axis rapid feed speed | 590mm/min |
Z-axis motor power | 1.1kw |
Max.weight of workpiece | 400kg |
T-slot number/Width/Distance | 3/18mm/80mm |
Milling head moving(Vertical) | Dovetail rail |
Cross slide way | Rectangular rail |
Longitudinal slide way | Dovetail rail |
Horse power for main motor | 4kw |
Coolant pump power | 90W(25L) |
X,Y axis driving motor | 750W |
Overall dimension | 1850×1790×1880mm |
Packing size | 1800×1900×2250mm |
2300×1900×2250mm | |
N.W./G.W. | 2100/2200kg(4200/4400kg) |
