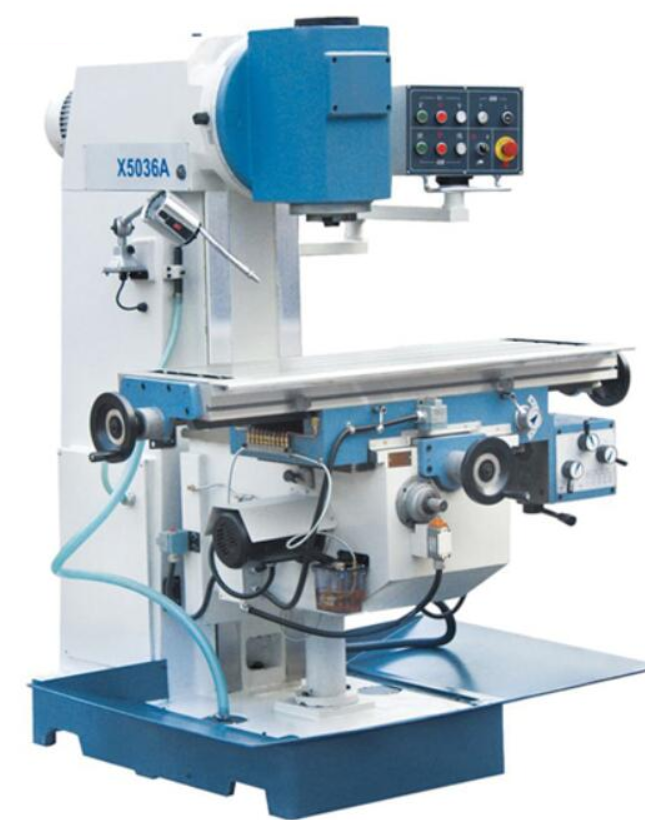

X5036A Universal Small Vertical Milling Machine
Features
1.It is a vertical milling machine,high power
2.Processing range widely
3.Automatic feed on two axis ,motorized lift on Z axis.
4.Rectangular guideway,hardened treatment
5.The rigidity of yhe spindle,strong cutting force.
6.Equipped with manual lubricating device, the lubrication on the lead screw and guideway
X5036A/B Vertical Milling Machine
Model X5036A and X5036B Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle
surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. When
mounted with the index, the machine will be able to perform milling operations in gears, Cutter, helix groove,
cam and tub wheel.
Vertical milling head can be swiveled by ±35°, Spindle quill can be moved in vertical.The longitudinal, cross
and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. It
has the large working table, a set of cantilever for electric button and a longitudinal handwheel in front of the
table, So the machine can be easy to operate. Working table and slide ways adopted quality cast hardened
ensure high accuracy.
Main Feature
MILLING MACHINE
Rectangular Table Guideways With High Stability
Automatic Feeds on X,Y Axis, Motorized Lifting and Falling of Table on Z Axis
Headstock Swivels ±45°
Gear Drived Milling Head
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching(Depth 2-4MM)
Work Table Made by HT200-250 High Strength Cast Iron
Rotary Table and Head
Digital Readout (optional)
Actuator (optional)
Oil Receiver (optional)
CE ISO Certificated
18 Months Warranty
Professional Design, Easy Operation
X5136A worktabe can rotate ±45°
SPECIFICATIONS OF VERTICAL KNEE TYPE MILLING MACHINE X5036A, X5036B | ||
Item | X5036A / X5136A | X5036B |
Spindle taper | ISO50 | ISO50 |
Distance from spindle to table | 60-540mm | 60-540mm |
Spindle speeds | (12 Steps)60-1700r.p.m | (12 Steps)60-1700r.p.m |
Table size | 1250×360mm | 1250×360mm |
Table travel (Horizontal/Cross/Vertical) | 600/320/450mm | 1000/320/450mm |
Feeding range of longitudinal.cross travel | 22-555mm/min(8 Steps) | 22-555mm/min(8 Steps) |
X,Y-axis rapid feed speed | 1080mm/min | 1080mm/min |
Z-axis raid feed speed | 590mm/min | 590mm/min |
Z-axis motor power | 1100W | 1100W |
Max.weight of workpiece | 400kg | 400kg |
T-slot Number/Width/Distance | 3/18mm/80mm | 3/18mm/80mm |
Milling head moving(Vertical) | Dovetail rail | Rectangle Rail |
Cross slide way | Rectangle Rail | Rectangle Rail |
Longitudinal slide way | Dovetail rail | Dovetail rail |
Horse power for main motor | 4kw | 4kw |
Coolant pump power | 90W(25L) | 90W(25L) |
X,Y axis driving motor | 750W | 750W |
Overall dimension | 1900×1850×1800mm | 2500×1850×1880mm |
Packing size | 1800×1900×2250mm | 1800×1900×2250mm |
2300×1900×2250mm | 2300×1900×2250mm | |
N.W./G.W. | 2100/2200kg(4200/4300kg) | 2200/2300kg(4400/4600kg) |
Specifications
Specifications | X5036A | X5036A-1 |
Spindle Taper (mm) | 7:24 ISO50 | 7:24 ISO50 |
Distance between Spindle Nose and Table Surface (mm) | 60-420 | 60-420 |
Distance from Spindle Axis to vertical Guideway (mm) | 320 | 320 |
Spindle Speeds Range (R.P.M) | 60-1700 | 60-1700 |
Table Size (mm) | (1370)1250*360 | 1250*360 |
Table Travel (mm) | (700)600*320*360 | 1000*320*380 |
Overall Dimension (mm) | 1770*1820*1880 | 2220*1790*1880 |
Motor (KW) | 4 | 4 |
N.W./G.W.(Kg) | 2200/2400 | 2300/2500 |
Standard Accessories
Complete coolant system
2 sets arbor support
Halogen machine lamp
Automatic central lubrication system
Cutter arbor φ32, φ50
Foundation bolts and nuts
Optional Accessories
2/3 axis DRO
Machine Vice
Dividing head
Rotary table
Milling chuck
