Milling/Drilling Machine XZ5150 |

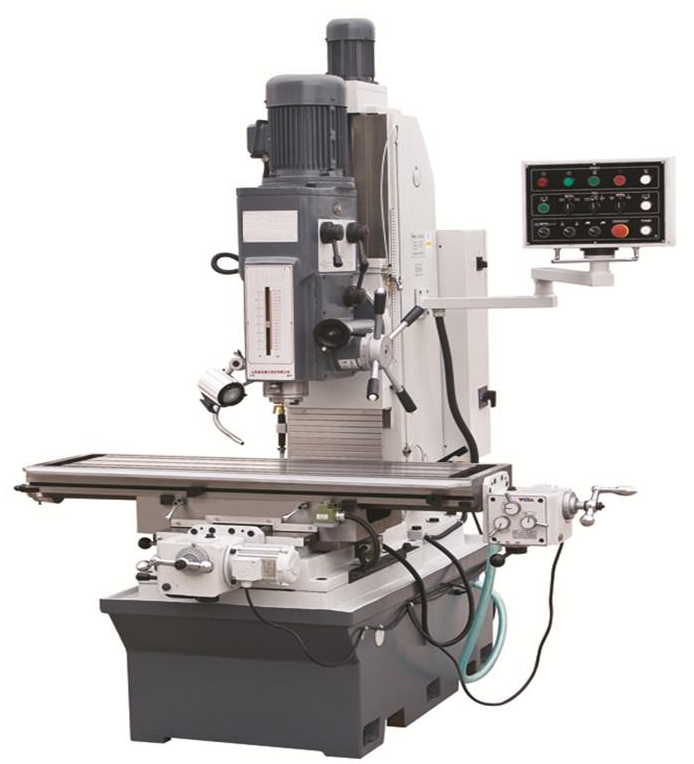

VERTICAL MILLING DRILLING MACHINE
1.Rectangular table guideways with high stability
2.Automatic spindle feed
3.Motorized lifting and lowering of head-stock
4.Headstock swivels±45°
5.Hardened and ground table surface.
SPECIFICATION | UNIT | XZ5150A | XZ5150 |
Max.vertical milling dia. | mm | 32 | 32 |
Max end mill width | mm | 125 | 125 |
Max. drilling dia. | mm | 50 | 50 |
Spindle taper | 7:24 ISO40 | 7:24 ISO40 | |
Spindle travel | mm | 180 | 180 |
Spindle speed range | r/min | 94-2256(16 steps) | 94-2256(16 steps) |
Automatic Feed Series sleeve | mm/r | 0.1/0.15/0.3(3 steps) | 0.1/0.15/0.3(3 steps) |
Distance spindle to table | mm | 100-580 | 100-600 |
Distance spindle to column | mm | 400 | 400 |
Swivel angle of headstock | 45 | 45 | |
Up/down speeds of headstock | mm/min | 2000 | 2000 |
Table size | mm | 1250x360 | 1220x360 |
Table travel | mm | 600x360 | 600x360 |
Table feeds range | mm/min | 22-555(8 steps)810(max.) | 18-555(8 steps)810(max.) |
T-slot of table (no./width/distance) | mm | 3/18/80 | 3/14/95 |
Main motor | kw | 1.5/2.4 | 1.5/2.4 |
Motor of table power feed | w | 750 | 370 |
Up/down motor of headstock | w | 550 | 550 |
Coolant pump motor | w | 40 | 40 |
N.W./G.W. | kg | 1900/2150 | 1760/2000 |
Overall dimension | mm | 1800x1900x2300 | 1730x1730x2300 |
