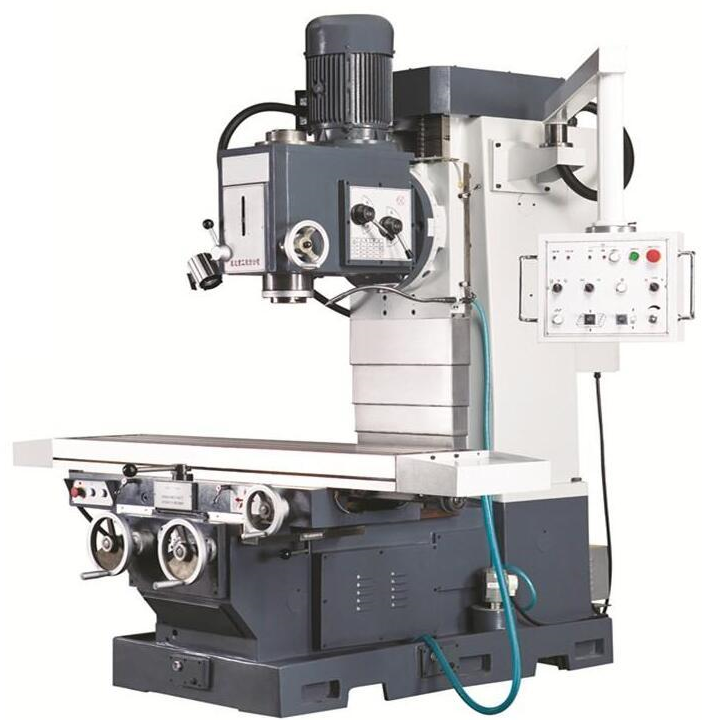

Bed-type milling machine XA7150 |
Bed-type Heavy Duty Milling Machine
The main performance characteristics:
Using MEEHANITE cast iron,
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Milling head can be rotated 30 degrees,
Hand piece gear transmission, 12 speed change, suitable for high rigidity of the strong cutting.
Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical
milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of
small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing,
mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing
equipment.
Product main technical Specifications:
XA7150 | Parameter | ||
Table size | 2000×400mm | ||
Table travel | 1500*620mm | ||
T-slot no/width/distance | 3/18/100mm | ||
Spindle taper | Vertical | ISO50 | |
Vertical travel of headstock | 100~650mm | ||
Spindle speed | vertical | 12steps | 66-1440r.p.m |
Distance from spindle axis to column surface | 600mm | ||
Table feed | X/Y feed speed | 20-2000mm/min | |
X/Y rapid feed speed | 2500mm/min | ||
Main motor | 6.5 / 8 KW | ||
Mechanical feed motor | 2.5KW,18N/m | ||
Coolant motor | 90W | ||
Overall dimension L*W*H | 3000×2420×2340 | ||
Net weight | 4500kg | ||
Max.load of table | 2000Kg | ||
