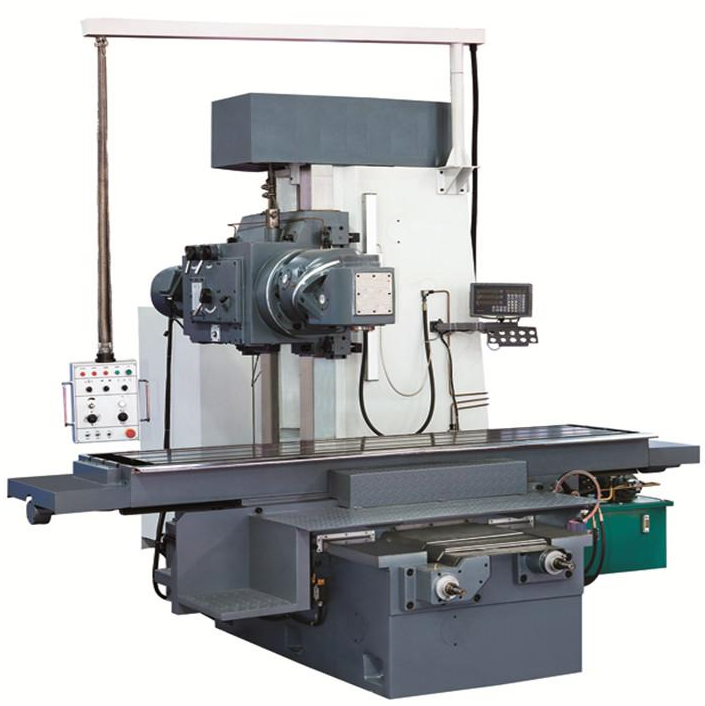

Bed-type universal milling machine X716 |
Bed-type Heavy Duty Universal Swivel Head Milling Machine
Feature
1. X716 cooperate with Nambul Co.,Ltd of South Korea in producing the machine
2. Advanced design,large load and wide machining range
3. Swivel head when horizonal milling
Specification | X716 | |
Table size(L×W) | 2500mm×575mm | |
Min. distance from horizontal spindle axis to table surface | 30mm | |
Min. distance from vertical spindle nose to table surface | 49mm | |
Distance from vertical spindle axis to column guideway | 110mm | |
Table Travel | Longitudinal | 1800mm |
Cross | 600mm | |
Vertical | 900mm | |
Spindle speed | step | 16 |
Speed range | 40-1200 rpm/min | |
T slot No./width/Distance | 3/22/152 | |
Spindle taper | ISO50 | |
Feed speed range | Longitudinal | 20~2200 mm/min |
Cross | 20~2200 mm/min | |
Vertical feed speed range | 12~1320 mm/min | |
Rapid feed speed(X,Y) | 3000 mm/min | |
Rapid feed speed(Z) | 1800 mm/min | |
Motor power | 11KW(spindle motor) | |
2.9KW(feed motor) | ||
Max. Load of Table | 3000Kg | |
Overall size(mm) | 4300mm×3200mm×3300mm | |
Machine weight | 10000Kg | |
