Bed-type milling machine X713 |

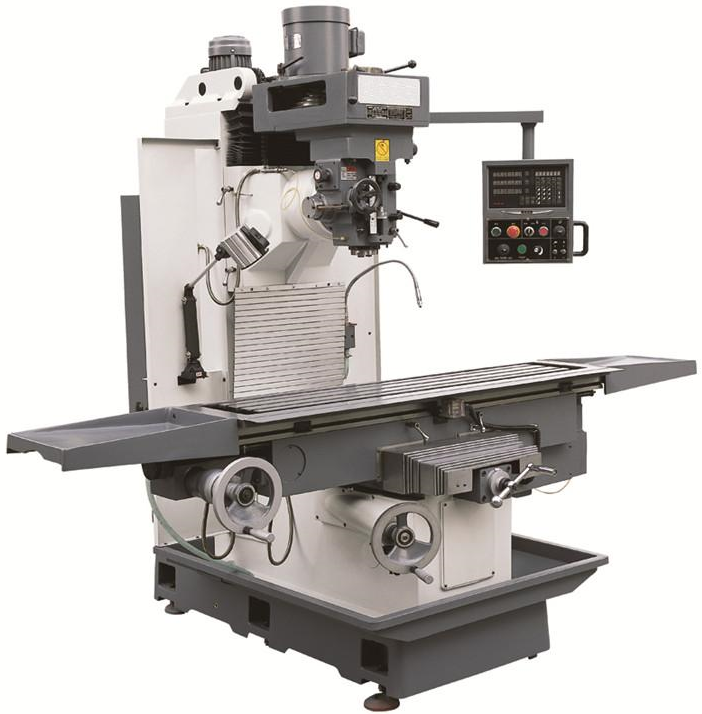

Bed Type Metal Milling Machine X713
Using MEEHANITE cast iron,
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Milling head can be rotated 30 degrees,
Import frequency conversion and frequency conversion technology to make the spindle more convenient
Technical Data of Vertical Milling Machine
Specification | Unit | X713 |
Spindle taper | ISO40 | |
Table size | mm | 1525×320 |
Table travel | mm | 1050×470 |
Spindle quill travel | mm | 127 |
NO./width/distance of T-slot | mm | 3-14-80 |
Spindle speed steps | 10 steps | |
Spindle speed range | r.p.m | 70~3620 |
Spindle feed rate capacity | r/min | 0.045mm; 0.086mm; 0.142mm /rev |
Distance between spindle axis and column guideway | mm | 450 |
Distance between spindle nose and table surface | mm | 75-595 |
Spindle motor power | HP | 5 |
Overall dimension(L×W×H) | mm | 2565×1920×2290 |
Net weight | kg | 2520 |
Standard Accessories of Vertical Milling Machine
standard accessories |
Milling chuck |
Spindle arbor |
Drilling chuck |
Vice |
Drawbar |
Ring spanner |
Sleeve |
