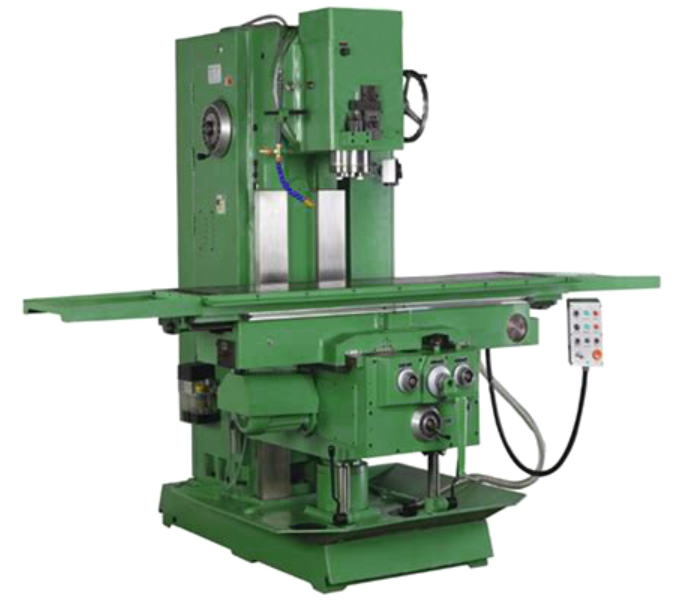

Vertical Knee-Type Milling Machine X5050 |
The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes,
and other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.
Product main technical parameters:
Specifications | Units | X5050 |
Table size | mm | 2000x500 |
T-type slot numbers / width /space | mm | 5-18-80 |
Max. load of table | kg | 1500 |
Longitudinal travel (manual/auto) | mm | 1530/1520 |
Transverse travel(manual/auto) | mm | 360/345 |
Vertical travel (manual/auto) | mm | 630/610 |
Cutting feed speed | mm/min | X.Y:16-800. Z:5-250 |
Rapid feed speed | mm/min | X.Y:3000..Z:1000 |
Spindle travel | mm | 90 |
Distance between spindle nose and table surface | mm | 95-725 |
Max. swivel angle of table | ±45° | |
Spindle speed step | steps | 18 |
Spindle speed range | rpm | 45-1800 |
Spindle motor power | KW | 15 |
Overall dimensions | mm | 2250x3200x2340 |
Machine weight | Kg | 5200 |
