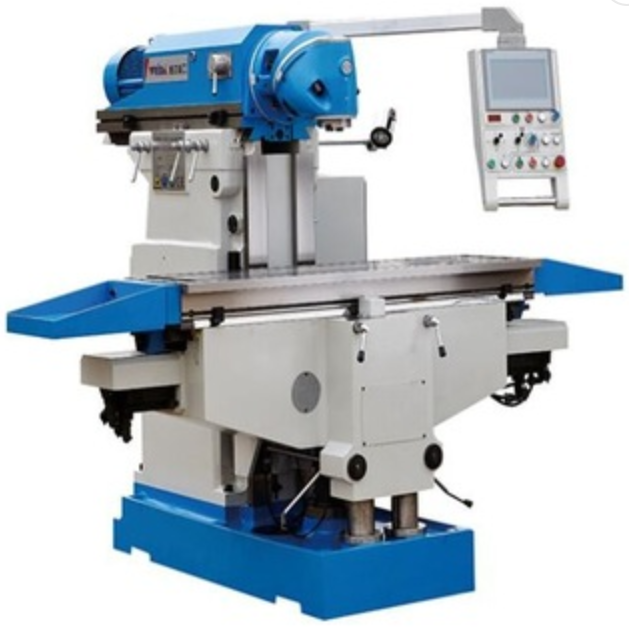

Universal Swivel Head Milling Machine X5750 |
Heavy Duty Swivel Head Universal Milling Machine
Main Features
1.It can mill any angle surface through front half-sphere by swivel milling head.
2.Table 3 axes with ball screws, high precision.
3.Table feeding with 3 separate servo motors, variable speeds, not interfere
each other, high reliability, easy to operate.
4.Mechanical change speeds in headstock, powerful milling.
5.Table with an extra supporting column, big load, high accuracy.
6.Milling head can swivel 360
7.Spindle taper ISO50
8.Main motor power 7.5kw
9.Max load 1800kg
Specifications | Unit | X5750 | X5750A |
Table size | mm | 500*1600 | 500*2000 |
T-slots(NO./width/pitch) | mm | 5*18*80 | |
Table travel (X/Y/Z) | mm | 1200*700*500 | 1400*700*500 |
Swivel angle of milling head | - | 360° | |
Spindle taper | - | ISO50 | |
Spindle speed range | r.p.m | (27) 30-2050 | |
Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/5-500 | |
Table rapid speed | 2200/2200/1100 | ||
Distance between spindle nose and table surface | mm | 50-550 | |
Distance from spindle center line to column | mm | 47-745 | |
Main motor power | Kw | 7.5 | |
Feed motor | Kw | AC servo motor X/Y:15NM; Z: 18NM | |
Max load | Kg | 1800 | |
Overall size | mm | 2625*2460*2080 | 2625*2860*2080 |
weight | kg | 4200 | 4500 |
Standard accessories:
Milling chuck
Inner hexagon spanner (5,6,8,10,12,14)
Wrench (S21-24; S27-30)
Draw bar (M24)
Middle sleeve
Nut
Washer
Milling arbor (ISO50-Ø27; ISO50-Ø32)
Shell end milling arbor
