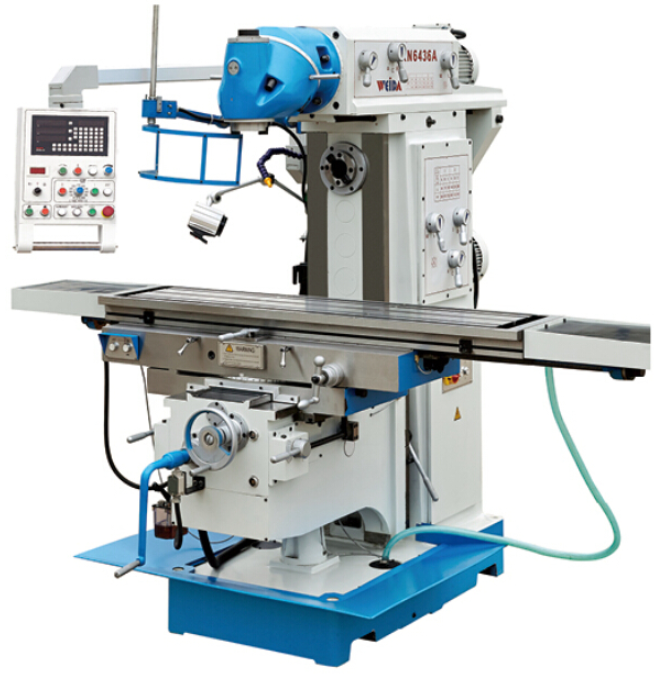

Universal Swivel Head Milling Machine XN6436A |
1.The machine is with universal milling head,it can swivel 360 degrees.
2.The table can swivel left and right side 35 degrees.
3.The machine can automatic feed on three axes controlled through one gear box.
4.The ram is movable forward and backward.
5.X,Y,Z servo motor drive
6.The machine is equipped with operation panel which is convenient for the operator.
| unit | XN6436A | |
| Table size | mm | 1650x360 |
| T slot no./width/distance | no | 3/14/95 |
| Max. load of Table | kg | 300 |
| swivel angle of table | degree | ±35º |
| table Longitudinal travel(manual/auto) | mm | 1300 |
| table Cross travel (manual/auto) | mm | 320 |
| table Vertical travel(manual/auto) | mm | 420 |
| Spindle taper | ISO50 | |
| spindle speed /step -- Vertical | rpm | 58-1800/12 |
| --Horizontal | rpm | 60-1750/12 |
| swivel angle of swivel head | degree | 360º |
| Distance from vertical spindle axis to column surface | mm | 230-550 |
| Distance from vertical spindle nose to table surface | mm | 170-580 |
| Distance from horizontal spindle axis to table surface | mm | 0-420 |
| Distance from horizontal spindle axis to ram bottom | mm | 175 |
| ram travel | mm | 500 |
| Longitudinal/cross feed | mm / min | 25-800 |
| Vertical feed /step | mm/min | 8-267 |
| Longitudinal/cross rapid speed | mm / min | 1200 |
| Rapid Traverse vertical | mm/min | 400 |
| main motor | kw | 5.5(H) 4(V) |
| (X/Y/Z) feed motor | kw | 1.8 |
| overall dimension | cm | 255x216.1x210.0 |
| Machine weight | kg | 2850 |
