Ball Head Seat Cutting Kit Sunnen SGM-500/700 |
.Fit sunnen machine VGS20
.1” ball head

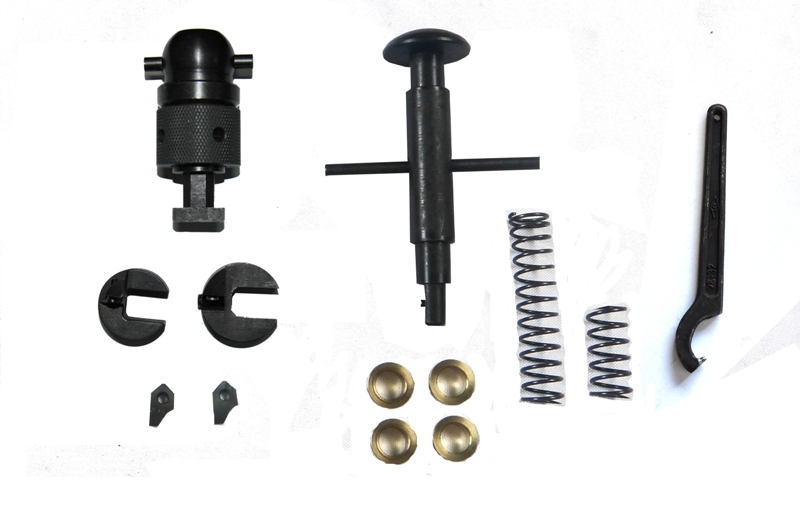

| SGM-700
.Fit.236" /5.99mm pilot Kit Includes: Part No.DescriptionsSGM-1020Cutter Body0.55-1.4 in.(14-35.5mm)SGM-1035Insert Holder Assy. 0.55-0.85 in.(14-21.5mm)SGM-1040Insert Holder Assy. 0.85-1.4 in.(21.59-35.5mm)VSC-717Insert, 38-45-60,1.5mmVSC-718Insert, 38-45-60,2.0mmSGM-1200Pilot Removal ToolVSC-780Level BushingPSP-212Spring, ShortPSP-213Spring, LongVSC-709Spring Bushing (4)PWMM-7Spanner WrenchNOTE: When ordering SGM700 separately,setting fixture VSC-400 may be needed. Uses CVP Pilots. | SGM-500

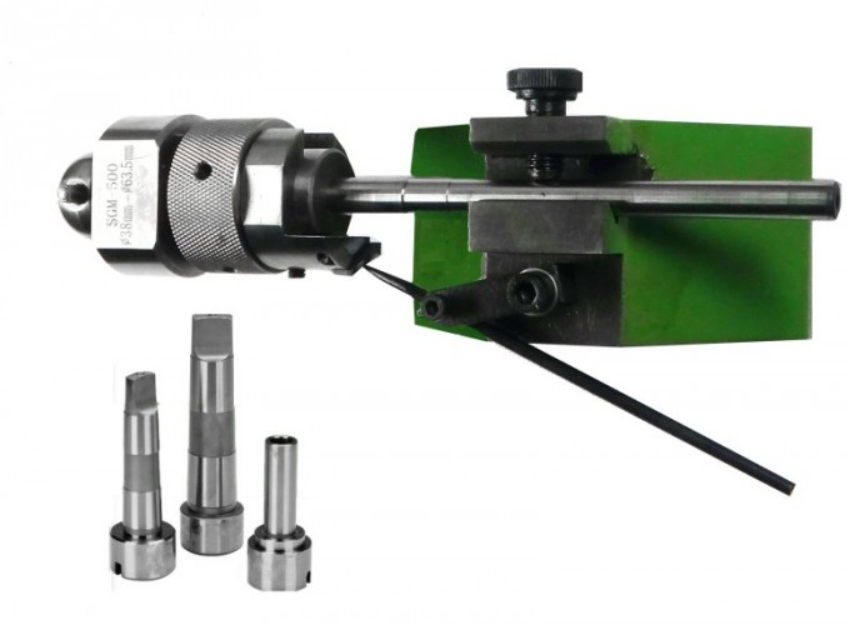

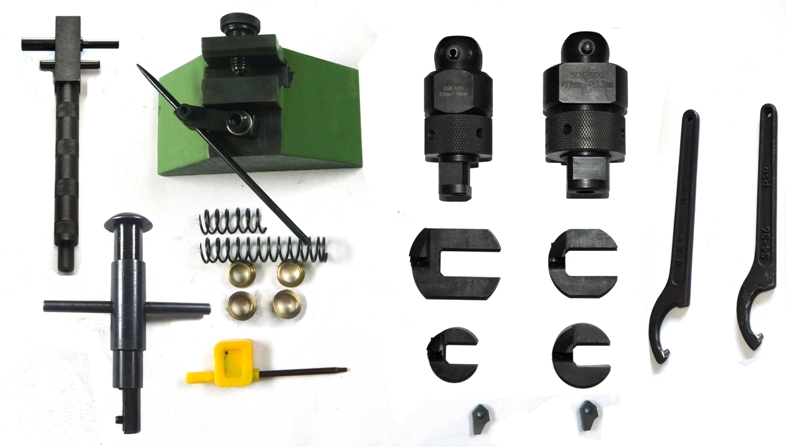

.Fit .389." /9.88mm pilot Kit Includes: Part No.DescriptionsSGM-1025Cutter Body1.00-1.56 in.(25.4-39.6mm)SGM-1030Cutter Body1.50-2.5 in.(38.1-63.5mm)VSC-06045Insert, 30-45-60,1.5mmVSC-08045Insert, 30-45-60,2.0mmSGM-1045Insert Holder Assy.1.00-1.25 in.(25.4-31.7mm)SGM-1055Insert Holder Assy.1.20-1.56 in.(30.5-39.6mm)SGM-1060Insert Holder Assy.1.50-1.94 in.(38.1-49.2mm)SGM-1065Insert Holder Assy.1.88-2.5 in.(47.6.1-63.5mm)VSC-400Setting FixturePSP-215Spring, ShortPSP-216Spring, LongVSC-509Spring Bushing (4)PWMM-8Spanner WrenchPWMM-9Spanner WrenchSGM-1015Cutter Body WrenchSGM-1100Pilot Removal Tool |

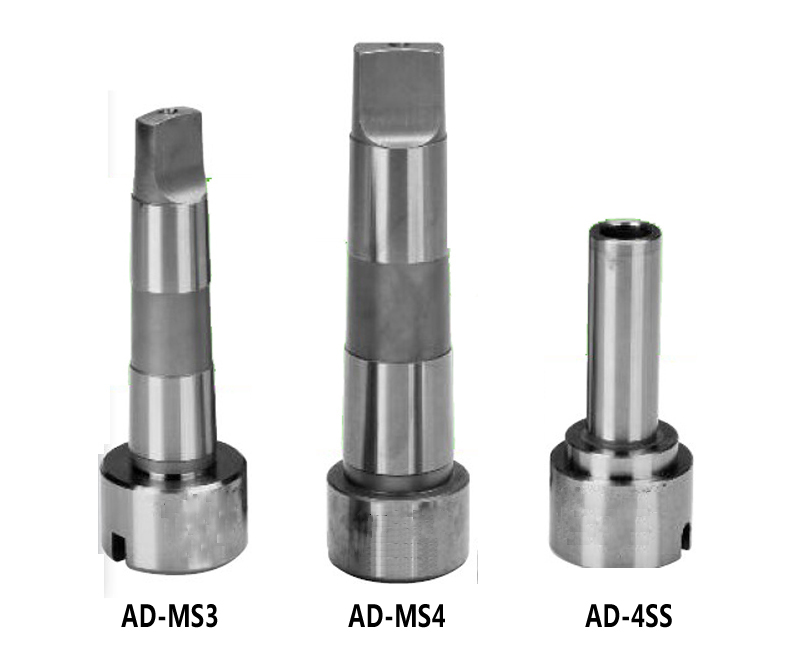

ADAPTERS | DESCRIPTION |
AD-MS3 | #3 Morse Taper Drive Adapter |
AD-MS4 | #4 Morse Taper Drive Adapter |
AD-4SS | Bridgeport & DCM Drive Adapter |
Note: order insert, pilot, adapter seperately. insert and pilot please see our table seperately.
