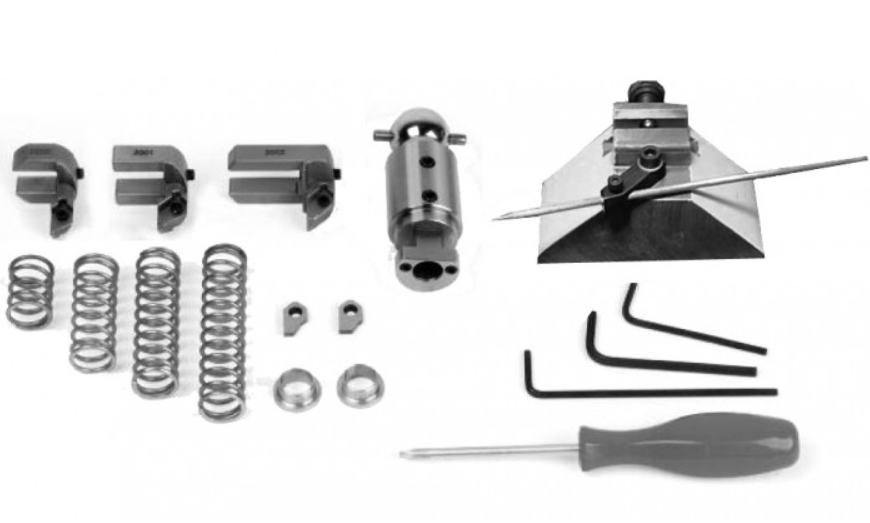

Ball Head Seat Cutting Kit BH375/385/390/437 |
Can be used with your existing pilot.
Fit most common 3-angle blade.
Compatible with most popupar machine kwikway-peterson, rottler, sunnen,T&S,winona van norma, etc.
| Description | Fits Pilot | Order No. | Includes | |||
| Fits Pilot Size | .375" / 9.53mm | 375-KIT | ▼ | |||
| .385 / 9.78mm " | 385-KIT | ▼ | ||||
| .390 / 9.90mm " | 390-KIT | ▼ | ||||
| .437 / 11.10mm " | 437-KIT | ▼ | ||||

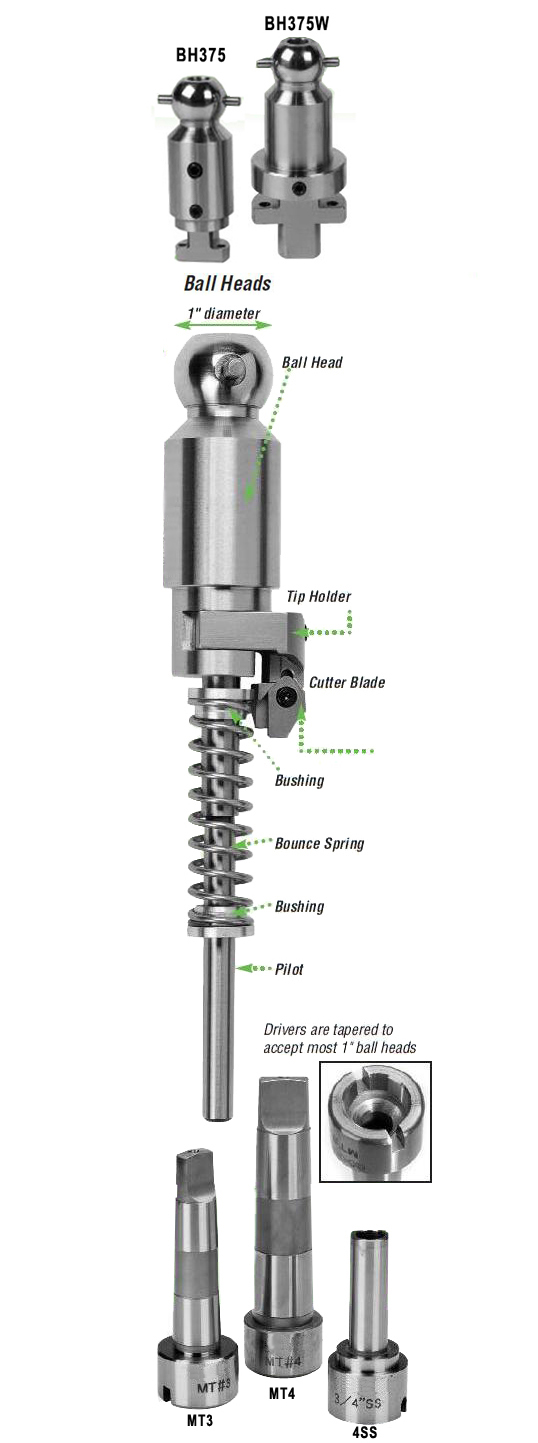

| Ball Head Standard | .375" / 9.53mm | BH375 | x | |||
| .385 / 9.78mm " | BH385 | x | ||||
| .390 / 9.90mm " | BH390 | x | ||||
| .437 / 11.10mm " | BH437 | x | ||||
| Ball Head Wide Body | .375 / 9.53mm " | BH375W | ||||
| .385 / 9.78mm " | BH385W | |||||
| Tip Holders | .709 -1.181" / 18-30mm " | 2000 | x | x | x | x |
| 1.02 -1.653" / 26-42mm " | 2001 | x | x | x | x | |
| 1.575 -2.362" / 40-60mm " | 2002 | x | x | x | x | |
| Tip Holders-Wide Body | 1.575 -2.362" (40mm-60mm) " | 2003 | ||||
| 2.385 -3.150" (58mm-80mm) " | 2004 1945 | |||||
| Cutters more NWN cutter available | 45°/1.0mm | NWNA1-4028 | x | x | x | x |
| 45°/1.5mm | NWNA1-4038 | x | x | x | x | |
| Tool Setting Fixture | VSC400 | x | x | x | x | |
| Cutter Blade Mounting Screw | FT-SCREW | x | x | x | x | |
| Blade Wrench | FT-WRENCH | x | x | x | x | |
| Automotive Spring Set (4 Pc.) | SS4 | x | x | x | x | |
| Bushing Set (1 pair) | .375 " | DB7 | x | |||
| .385 " | DB6 | x | x | |||
| .437 " | DB5 | x | ||||
| Ball Head Drive Adaptors | #3 Morse Taper Driver | MT3 | ||||
| #4 Morse Taper Driver | MT4 | |||||
| Bridgeport & DCM Driver | 4SS | |||||
