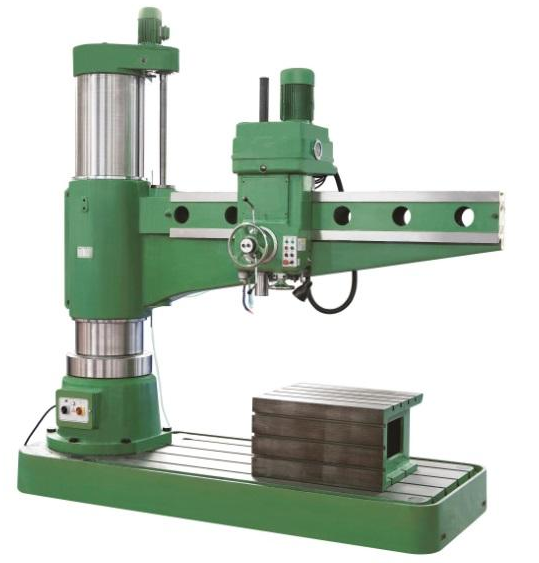

Mechanical ZQ3040X10-13 / ZQ3050X13-16



Features

Mechanical  transmission

Mechanical  clamping

Mechanical speed

Automatic  take-off  and  landing

Automatic  feed

Specification

Units

ZQ3050×16

ZQ3050X13

ZQ3040X13

ZQ3040X10

Max. drilling   diameter

mm

50

40

Distance spindle   nose and work surface of base

mm

260-1050

260-1050

Distance between   spindle axis and column

mm

360-1600 / 360-1300

360-1300 / 360-1000

Spindle travel

mm

360

200

Spindle taper

Morse

5

4

Range of spindle   speeds

r/min

78/135/240/350/590/1100

75/130/240/380/660/1200

Number of   spindle speeds

step

6

6

Range of spindle   feeds

mm/r

0.10-0.56

0.10-0.25

Rocker rotary   angle

°

360

360

Motor power

kw

4

2.2

Movement motor   power

kw

1.5

1.5

Machine weight

kg

2800 /2400

1500 / 1100

Overall   dimension

mm

2170×950×2450

1950x210x2450

1800x810x2300

1500x705x2200
