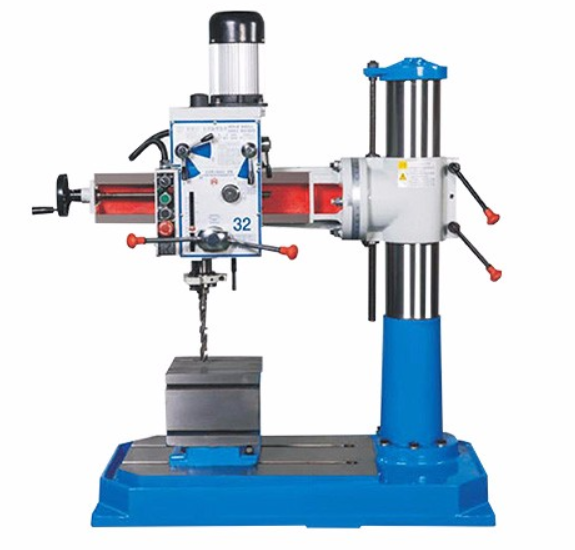

Hydraulic Z3032x7 / Z3032x7P |
RADIAL ARM DRILLING MACHINE FEATURES:
1. Rocker drill is a kind of hole processing equipment,Can be used for drilling, reaming, reaming, tapping and
scraping faces and other forms of processing.
2. The radial drilling machine has the advantages of convenient and flexible operation and wide application
range,Have typical, Particularly suitable for the production of single piece or batch, Hole machining with
porous large parts, Ideal machine tool for single piece and batch production.
SPECIFICATIONS | UNITS | Z3032X7/Z3032X7P |
Max. Drilling capacity | mm | 32 |
Max. Tapping capacity | mm | Cast iron;20 Steel;16 |
Diameter of column | mm | 150 |
Taper of spindle | MT3 | |
Spindle travel | mm | 130 |
Distance spindle axis to column generating line | mm | 300-700 |
Max. spindle nose to base | mm | 275--680 |
Swing angle of swing arm in horizontal plane | 360 | |
Spindle taper | MT3 | |
Spindle speeds range | r/min | 100-1600 |
Spindle speeds series | 8 | |
Spindle feeds | mm/r | 0.08, 0.14, 0.23, |
Dimension of worktable surface | mm | 250x250x250 |
Table travel | mm | 560 |
Dimension of base table | mm | 1050x550x120 |
Spindle motor power | K w | 1.1/0.75 |
G.W/N.W | kg | 415/385, 540/500 |
Packing dimension | cm | 126x65x139/133X75X149 |
