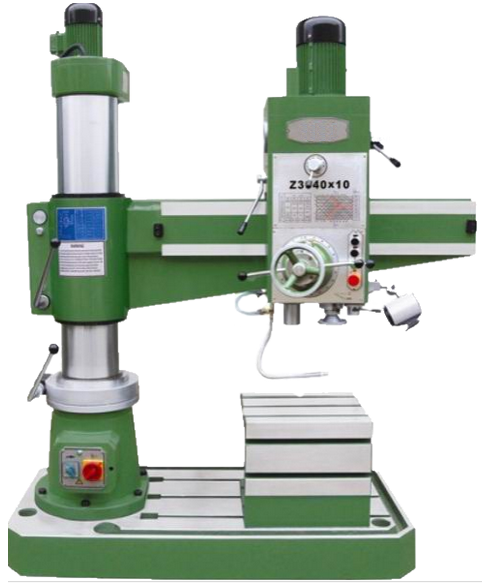

Hydraulic Z3032x10 / Z3040x10 |
RADIAL ARM DRILLING MACHINE FEATURES:
1.With safe and reliable feed safety machine, all parts easy operation and change.
2.All controls centralized on the head stock easy operation and change.
3.Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.
4.Integrating the technology for casting parts is excellent adopting casting equipment.
5.Spindle parts are made by special high quality steel heat treatment to be made by first class equipment.
6.Main gears are machined by gear grinding, the machine ensuring high precision and low noise
7.The machine with small appearance and much function, the machine widely used for drilling,tapping, etc.
MODEL NO. | Z3032x10 | Z3040×10 |
Maximum drilling diameter | 32mm | 40mm |
Distance spindle center to column surface | 200mm-1000mm | |
Column diameter | 240mm | |
Spindle taper | MT4 | |
Spindle stroke | 71-1800 | |
Spindle speed range | 8 | |
Spindle speeds | 0.13-0.54mm/r | |
Spindle feed | 4 | |
Spindle nose to working surface | 264-1064mm | |
Table size | 400X450X400mm | |
Base Dimensions | 1500X740X160mm | |
Overall dimensions | 1730X750X2360mm | |
Motor | 2.2W | |
GW / NW | 1600/1530KG | |
Packing size | 187X97X220cm | |
