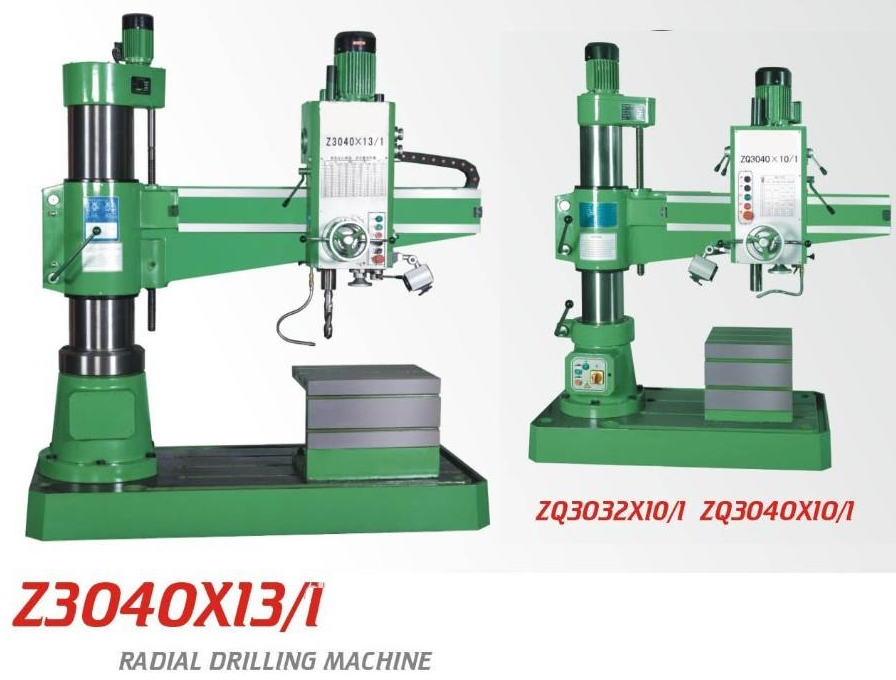

Hydraulic Z3050x12/1 Z3040x13/1 Z3032x10/1 |
Characters：
●With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily
engaged and disengaged at any time.
● With safe and reliable feed safety machgine, all parts easy operation and change.
● All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change
of spindle aachiered by hydrandic power, cmle is sensitna owet nelile.
● Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability
high quality.
●Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia
for basic parts.
● Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, nsuring
high strength and durability.
● Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Model | Z3050x12/1 | Z3032X10/1 Z3040X10/1 | Z3040X13/1 | |
Max. Drilling capacity | mm | 50 | 32/40 | 40 |
Distance spindle axis to column generating line | mm | 350~1250 | 300~1000 | 300~1300 |
Diameter of column | mm | 350 | 240 | 300 |
Spindle taper | MT5 | MT4 | MT4 | |
Spindle travel | mm | 315 | 280 | 280 |
Spindle speeds range | r/mm | 25~2000 | 32~2500 | 32~2500 |
Spindle speeds series | 16 | 16 | 16 | |
Range of Spindle feeds | mm/r | 0.04~3.2 | 0.10~1.25 | 0.10~1.25 |
Mpindle Spindle feeds | 16 | 8 | 8 | |
Distance spindle nose to working surface of base | mm | 350~1220 | 220~1000 | 300~1320 |
Dimension of worktable | mm | 630X500X500 | 600X450X450 | 600X450X450 |
Dimension of base | mm | 2050X1000X200 | 1710X800X160 | 2050X900X200 |
Overall Size | mm | 2150X1060X2650 | 1760X800X2050 | 2100X900X2300 |
Power of Main motor | KW | 4 | 2.2 | 3 |
G.W/N.W | kg | 3250/3000 | 1920/1830 | 2500/2100 |
Packing dimension | cm | 240X112X252 | 187X97X220 | 235X106X245 |
