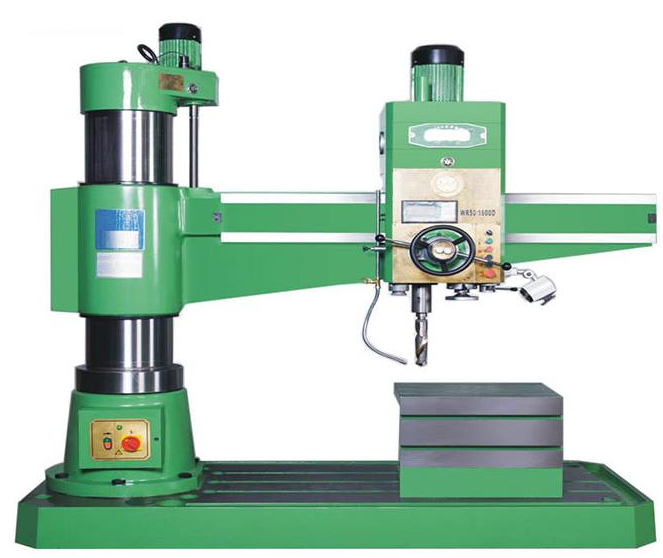

Hydraulic Z3040x16/2 Z3050x16/2 ZQ3050X20/2 |
Characters：
●With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily
engaged and disengaged at any time.
● With safe and reliable feed safety machgine, all parts easy operation and change.
● All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change
of spindle aachiered by hydrandic power, cmle is sensitna owet nelile.
● Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability
high quality.
●Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia
for basic parts.
● Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, nsuring
high strength and durability.
● Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Model | Z3040x16/2 | Z3050X16/2 | ZQ3050X20/2 | |
Max. Drilling capacity | mm | 40 | 50 | 50 |
Distance spindle axis to column generating line | mm | 350~1600 | 350~160 | 350~2000 |
Diameter of column | mm | 350 | 350 | 350 |
Spindle taper | MT4 | MT5 | MT5 | |
Spindle travel | mm | 315 | 315 | 315 |
Spindle speeds range | r/mm | 25~2000 | 25~2000 | 25~2000 |
Spindle speeds series | 16 | 16 | 16 | |
Range of Spindle feeds | mm/r | 0.04~3.2 | 0.04~3.2 | 0.04~3.2 |
Mpindle Spindle feeds | 16 | 16 | 16 | |
Distance spindle nose to working surface of base | mm | 350~1250 | 320~1220 | 320~1220 |
Dimension of worktable | mm | 630X500X500 | 630X500X500 | 630X500X500 |
Dimension of base | mm | 2400X1000X200 | 2400X1000X200 | 2400X1000X200 |
Overall Size | mm | 2500X1060X2650 | 2500X1060X2650 | 2900X1060X2650 |
Power of Main motor | mm | 3 | 4 | 4 |
G.W/N.W | kg | 3650/3400 | 3650/3400 | 3850/3550 |
Packing dimension | cm | 260X112X260 | 260X112X260 | 300X112X260 |
