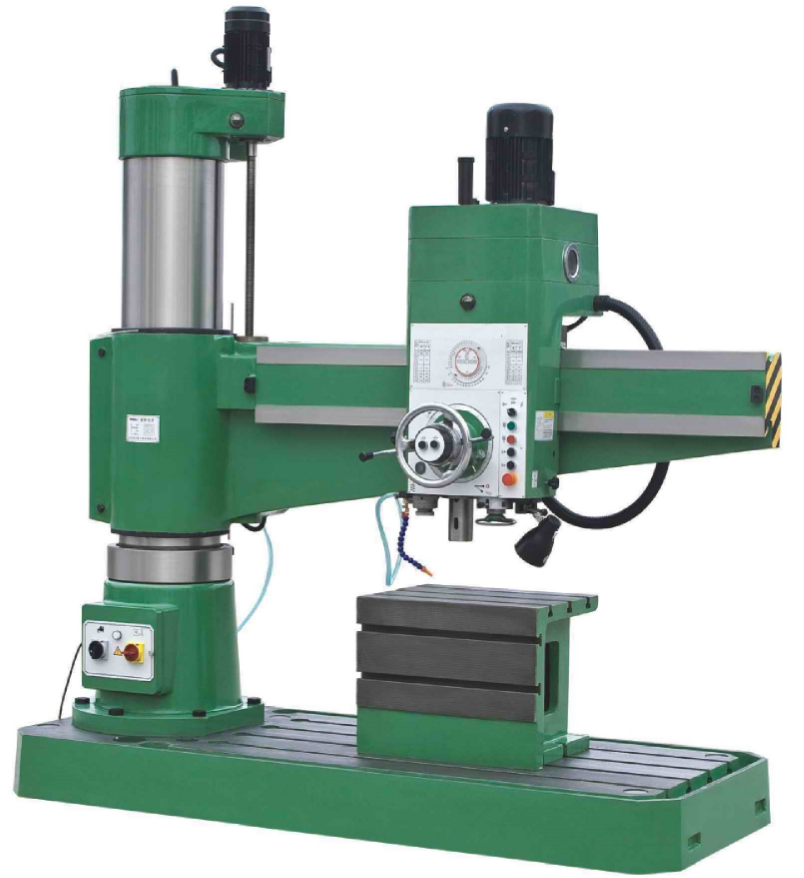

Hydraulic Z3080X25 Z3063X20A |
Characters：
●With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily
engaged and disengaged at any time.
● With safe and reliable feed safety machgine, all parts easy operation and change.
● All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change
of spindle aachiered by hydrandic power, cmle is sensitna owet nelile.
● Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability
high quality.
●Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia
for basic parts.
● Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, nsuring
high strength and durability.
● Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
| Model | Z3050×16/1 | Z3063×20A | Z3080X25 |
| Max. Drilling capacity (mm) | 50 | 63 | 80 |
| Distance spindle axis to column generating line (mm) | 350-1600 | 450-2050 | 500-2500 |
| Diameter of column (mm) | 350 | 450 | 550 |
| Spindle taper | MT5 | MT5 | MT6 |
| Spindle travel (mm) | 315 | 400 | 450 |
| Spindle speeds range (r/min) | 25-2000 | 20-1600 | 16-1250 |
| Spindle speeds series | 16 | 16 | 16 |
| Range of Spindle feeds (r/min) | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 |
| Spindle feeds | 16 | 16 | 16 |
| Max. Distance spindle nose to working surface of base (mm) | 320-1220 | 400-1600 | 550-2000 |
| Dimension of worktable (mm) | 630×500×500 | 960×630×500 | 1000×800×560 |
| Dimension of base (mm) | 2400×1000×200 | 2900×1250×250 | 3530×1400×300 |
| Overall Size (mm) | 2500×1060×2650 | 3110×1250×3150 | 3730×1400×3790 |
| Power of Main motor (KW) | 4 | 5.5 | 7.5 |
| G.W/N.W (kg) | 4300/3500 | 8000/7000 | 15000/11000 |
| Packing dimension (cm) | 270×112×258 | 347×147×235 | 416×165×248/ |
| 382×63×170 |
