Double Column Moving Lifter QJY3.0-E |
Feature:

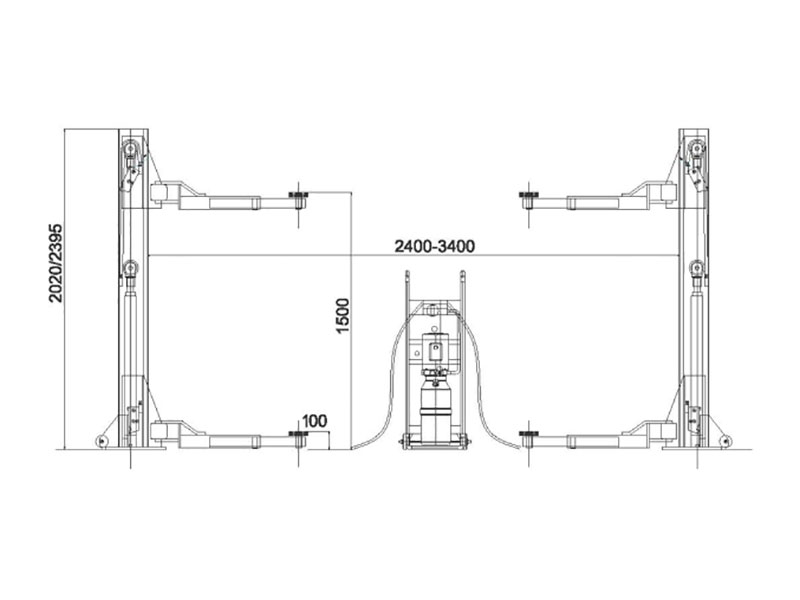

·1500mm lifting height

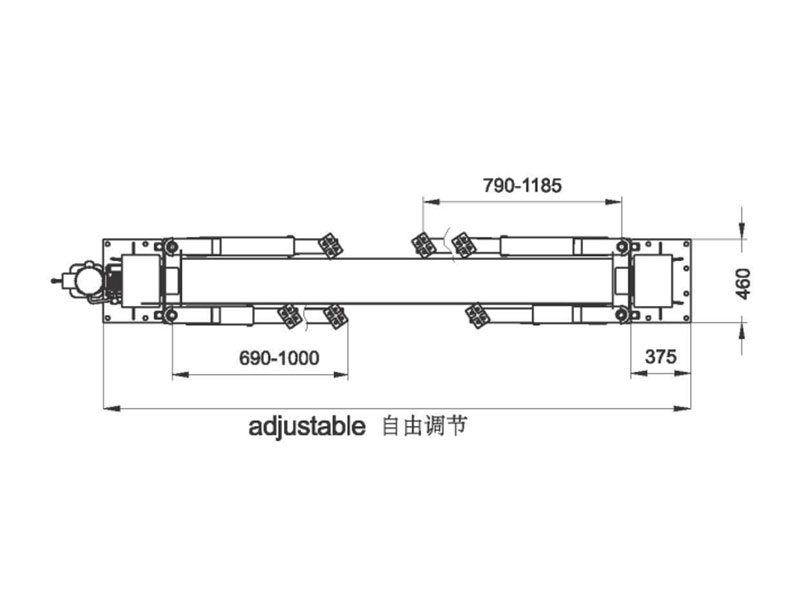

·Width adjustable, suitable for a variety of wide and narrow vehicles
·Optional three section lifting arm design.
·The lifting arm automatically locks the structure, each lifting arm will be locked automatically when
it leaves the ground, and the locking device opens when it falls to the ground. The stout part of the
lock will distort and distort when the vehicle sloshing or suddenly weightlessness, causing the vehicle
to break out of the fulcrum.
·The hoisting pads can easily adjust the height and locate the vehicle's supporting points.
·The height support is suitable for the use of light cards.
·Design with column housing and beautiful appearance
·After 120% dynamic loading test, 150% static loading test;
·Comply with CE standard.
Model | Capacity | Lifting height | Rise time | Drop time | power supply | Motor power | Width between pillars | Net weight |
QJY3.0-E | 3.0t | 1500mm | ＜40s | ＞20s | 380v/220v | 2.2kw | Adjustable | 450kgs |
QJY3.0-E1 | 3.0t | 1750mm | ＜40s | ＞20s | 380v/220v | 2.2kw | Adjustable | 480kgs |
