The basic and the most popular model for restoring the working surface of the brake discs of a car.

The peculiarity of this machine is the direct work on the car, without removing the brake disc. For work

you need a car lift. It is enough to remove the wheel, and release the brake caliper (by hanging it on the

spring of the shock absorber with a hook). In place of the brake caliper, a turning module is installed,

and the disc drive is carried out using the main unit to rotate the hub.

Modification of the machine can have a universal rack with variable height of the drive unit. In this case,

work can be done on a car standing on the floor, simply by lifting it with a car jack (you need to install it

on special stands) and removing the wheel to access the disc.

To complete the restoration of 2 disks, it takes about 30 minutes. Together with this, it is reasonable to

replace the brake pads with new ones.

As a result of this operation, the owner of the car gets a perfectly flat surface of the brake disc.

After treatment, the following defects are corrected;

• Removing disc rust.

• Disc runout.

• Disc roughness.

• Geometric disc      distortion.

• Squeaking.

• Whistling and noise      during braking.

And, for this, the small part of the disk surface will be cut off. Not requiring special skills of the employee,

the entire procedure is relatively simple and intuitive.

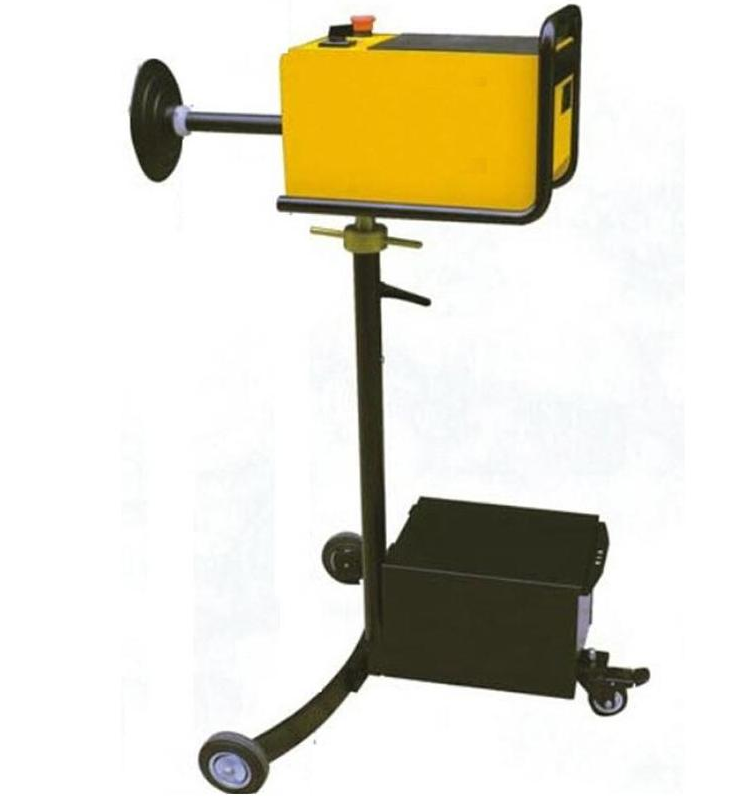

Drive Unit:

Working height min / max: 1 / 1.25m
Drive speed: 98rpm
Electrical specifications: 220V / 110V
Weight: 45kg
Ambient temperature range: -5°C to 35°C
Turning accuracy: ≤ 0.005mm
Brake disc runout: ≤ 0.005mm
Brake disc thickness variation: 0.005 – 0.01mm
Brake disc surface roughness: Ra 1.5 – 2.0um

Lathe Features:

Max.diameter of brake disc: 380mm

Max.brake disc thickness: 42mm

Adjustment knob accuracy: ≤ 0.02mm - ≤ 0.01mm

Feed rage: 8.5mm/min

Power: 220v/11v

Net weight: 7.3kg
