On Car Bake Lathe BL-602 |
BL-602 is attached directly on vehicles for resurfacing.
The existing model is upgraded and remodeled from customer-oriented perspectives to enable easier and safer car brake disc resurfacing.
Resurfacing articularly improves the performance of brake disc and shortens the braking distance to guarantee safer operations.
Try operation it on various vehicle types.

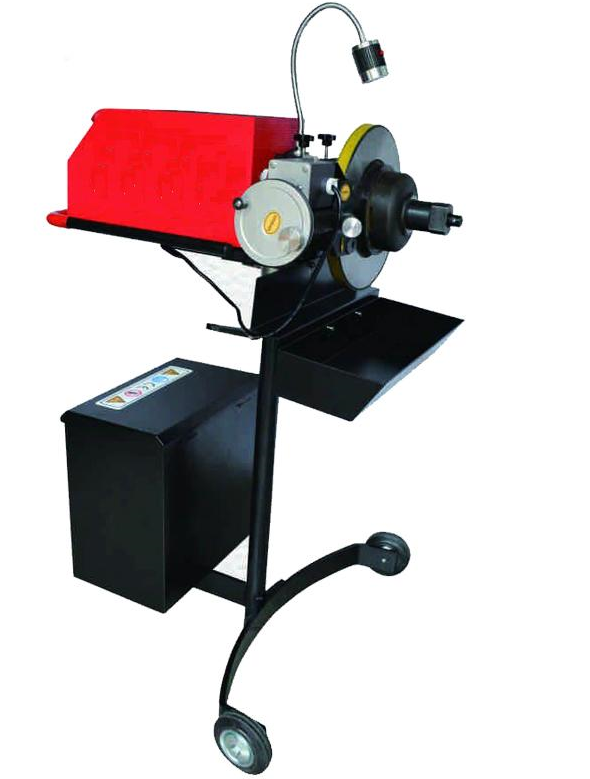

On car & on desk Brake Disc Lathe BL-602
Main Features:
1.Working height min/max: 1/1.25m
2.Drive speed: 98rpm
3.Electrical specifications: 220V/110V.
4.Albient temperature range:-20 ℃ to 40℃.
5.Year of construction:show on information plate.
6.Turning accuracy:≤0.005mm.
7.Brake disc runout: :≤0.005mm.
8.Brake disc thickness variation:0.005-0.01mm.
9.Brake disc surface roughness:Ra 1.5-2.
Lathe Features:
1.Maximum diameter of brake disc:380mm.
2.Maximum beake disc thickness:42mm.
3.Adjustment knob accuracy: ≤ 0.02mm - ≤ 0.01mm.
4.Feed rate:8.5mm/min.
5.Electrical specifications:220V/110V/50HZ/60HZ.
6.Net weight:73kg.
