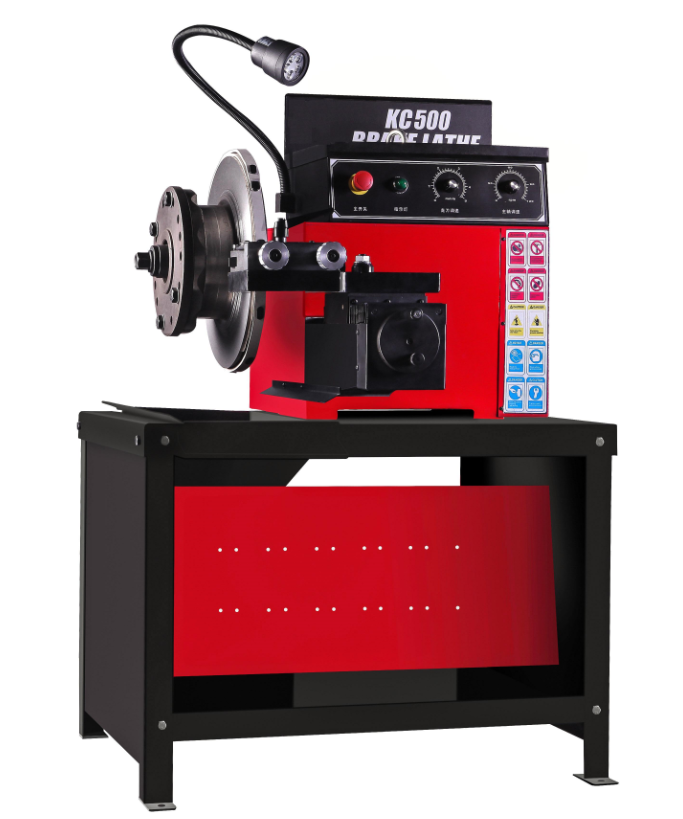

Brake Lathe KC500 |
Main specifications
Model | KC500 | Motor | 220V/380V, 50/60Hz, 1.5kw |
Spindle Speed | 0-120RPM | Feed Speed | 0-1.84″(0-46.8mm)/min |
Disc Travel | 5.12″(130mm) | Max Cutting Depth | 0.023″(0.6mm) |
Disc Diameter | 9.45″-19.02″(240-483mm) | Disc Thickness | 2″(50mm) |
Gross Weight | 300KG | Dimension | 1130*1030*1300mm |
Feature:
1. The machine is suitable for all kinds of vehicles, including buses, trucks, SUVs and so on.
2. The machine is equipped with a 1.5KW conversion motor.
3. Two working lamps will keep the work area lighted even in dark places.
4. The work bench will reduce the vibration and chattering.
5. The special holder and blade ensure the perfect finish.
6. Variable spindle speed and feed speed provide the high efficiency.
Standard Adapter
No. | Standard Accessories | Qty |
1 | Arbor Φ45mm | 1 |
2 | Open End Wrench (27-30mm) | 1 |
3 | Taper Cone 2.28″×3.07″(58×78mm) | 1 |
4 | Taper Cone 2.68″×3.46″(68×88mm) | 1 |
5 | Taper Cone 3.07″×3.86″(78×98mm) | 1 |
6 | Taper Cone 3.46″×4.25″(88×108mm) | 1 |
7 | Taper Cone 3.86″×4.65″(98×118mm) | 1 |
8 | Taper Cone 4.25″×5.04″(108×128mm) | 1 |
9 | Spacer 1.18″,2.17″(30mm,55mm) | 2 |
10 | Clamp 3.62″(92mm) | 1 |
11 | Clamp 4.02″(102mm) | 1 |
12 | Clamp 4.41″(112mm) | 1 |
13 | Clamp 4.80″(122mm) | 1 |
14 | Clamp 5.20″(132mm) | 1 |
15 | Spring 1.77″(Φ45mm) | 1 |
16 | Silencing Belt | 2 |
