Brake Lathe T8370 |

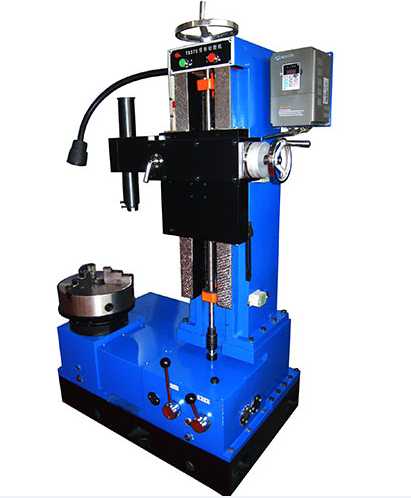

T8370 Brake drum cutting machine is an advanced brake drum machining
equipment contributed by our factory to customers recently . The operation ,
stop and speed change of the spindle is completely controlled by computer ,
with easy and convenient operation, advanced in performance and reliability.
The spindle is used with advanced variable frequency and adjustable speed,
it can achieve stepless speed regulating from 30-125r/min. All operations are
controlled by keyboard and knobs. In the case of machine unstopping , the
spindle speed can be changed at will. A chuck is equipped on spindle with
wide application for lathe type: it is very convenient for set up of brake drum
without wheel hub, very convenient for your application.
Main Specifications:
| Model | T8370 |
| Cutting diameter | 200-700mm |
| Max. Cutting depth | 320mm |
| Spindle speed | 30-130r/min(stepless regulating |
| Feeding speed | Fast 0.30 mm/r |
| Slow 0.20mm/r | |
| Motor | 380V 2.2KW 50-60HZ |
