CR718 ALL FUNCTION COMMON RAIL TEST |

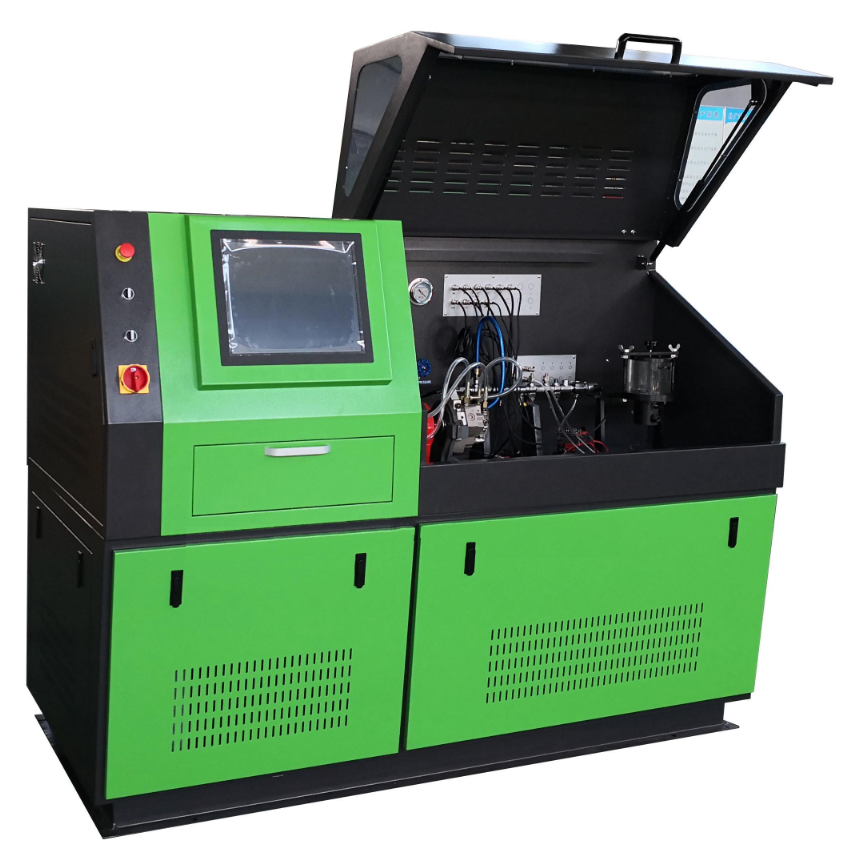

CR718 ALL FUNCTION COMMON RAIL TEST BENCH is professional test bench which is used for testing common
rail system, can test common rail pump, common rail injectors at the same time. It also can add the testing function of EUI/EUP and HEUI
1. Pump Testing: Pressure, PVC working status, Leakage of itself, Pump Delovery ( Optional), HP0 pump testing ( Optional)
2. Injector Testing : Leakage, Oil quantity (Pre-injection, Idling, emissions, full load) (Leak, VL, EM, LL, VE)
3. Pressure Sensor/ DRV valve testing
4. Support System: BOSCH, DENSO, DELPHI and SIEMENS
5. Testing data inside ( Pump and Injector)
6. Electronic fuel delivery measuring ( automatic detection)
7. Data can be searched, printed and made into database.
8. HEUI testing function
9. EUI/EUP testing function
Optional Function:
1. Test piezo injector function
2. Test HPO pump function
3. BOSCH DRV valve function
4. Checking Delivery of CR PUMP
5. Printer
6. Forced cooling
7. Test EUI/EUP function and test HEUI function
CR718 Common Rail Test Bench Technical Parameters | |||
Voltage | 3 Phase 380V , 3 Phase 220V , 1 Phase 220V | ||
Motor Power | 7.5KW, 11KW, 15KW, 18.5KW | ||
Motor Speed | 0-4000 RPM | ||
Pressure Adjustment | 0-2500 Bar | ||
Flow Testing Range | 0-600ml/1000times | ||
Flow Measurement Accuracty | 0.1ml | ||
Temperature range | 40+-2 | ||
Cooling System | Fan or Forced Cooling | ||
