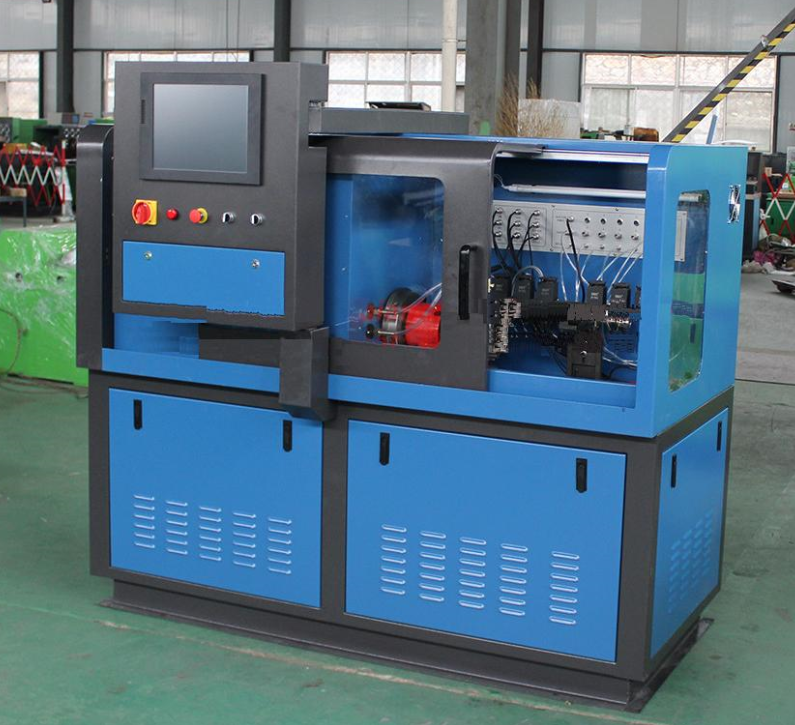

CR926 COMMON RAIL SYSTEM TEST BENCH-CR, HEUI, EUI EUP

CR926 Common Rail Test Bench Application

Mainly test for common rail pump and injector.Also it is continuous fuel delivery analysis computerized

measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring

system is compulsory for modern diesel injection system testing. It guarantees a high level of re-productivity

of the measured value.
professional test bench which is used for testing common rail system, can finish the high-pressure common

rail system functional testing.
Specialized test bench for Common Rail testing:
Common Rail System:
All Brand Common Rail Pumps.
Solenoid valve CRI of All Brand
Solenoid valve CRIN
Piezo Injector Testing
With test data and test plan.
It also can test 6 common rail injectors in one time.

EUI / EUP testing function.

HEUI testing function .

CR926 Common Rail Test Bench Technical Parameters

1.Motor power: 7.5KW, 11KW, 15KW, 18.5KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling

CR926 Common Rail Test Bench Function

1.Test piezo injector function and Electromagnetic injectors
2.Test HP0 pump function.
3. DRV testing
4.Checking the oil pump flow.
6.Forced cooling
7.HEUI TESTING

8.EUI EUP TESTING

Optional Function >>>
Forced cooling
