Car Injector cleaner & Tester CNC-602A |
Launch CNC602A Car Injector cleaner & Tester
Introdution:
CNC-602A is an advanced electromechanical product, which can clean and test Auto engine
injectors by simulating engine working conditions. It can also perform cleaning on the injectors
and fuel supply system on vehicle
Feature:
* Ultrasonic cleaning: To perform simultaneous cleaning on several injectors, to remove the
carbon deposits on the injector completely.

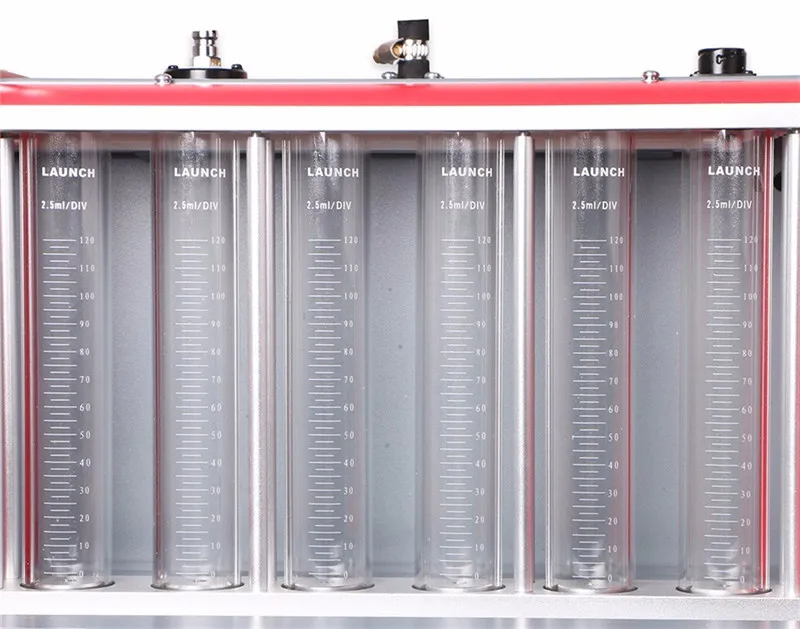

* Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector,
and to monitor the spraying status of each injector with the lighting of backlight. This test is
also for reverse flush.
* Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
* Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
* Auto. test: To test injectors by simulating different working conditions.
* n-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate
cleaning on the injectors on vehicle.
Specification:
Power supply
| AC220V±10%,50/60Hz;AC110V±10%, 50/60Hz. |
Input Power | 250W |
Ultrasonic cleaner power | 100W |
Simulated RPM range | 10-9990rpm; step: 10rpm |
Time range | 1-9999s |
Pulse width | 0.5-25ms; step 0.1 ms |
Fuel tank capacity | 4700ml |
Dimensions | 385mm×410mm×500mm |
Weight | 35Kg |
