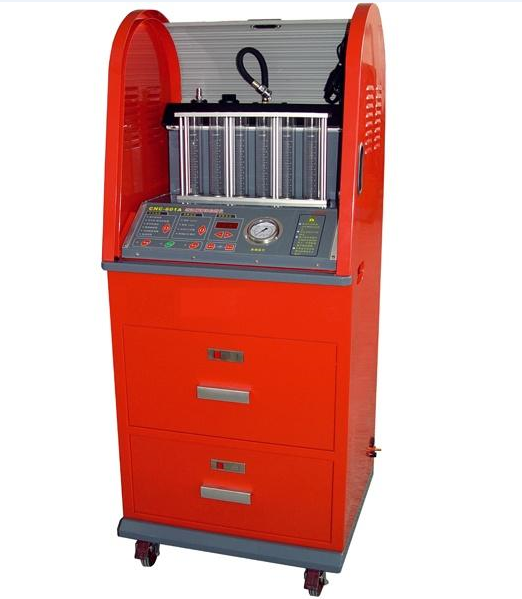

CNC- 601A fuel injector tester and cleaner machine fast shipping

1.Introduction

CNC-601A injector cleaner & tester manufactured by LAUNCH TECH CO., LTD. Developed with the

technology of ultrasonic cleaning and fuel pressure control, CNC-601A is an advanced electromechanical

product, which can clean and test injectors by simulating engine working conditions. It can also perform

cleaning on the injectors and fuel supply system on vehicle.

2.  Specification

* Power supply: AC220V±10%, 50/60Hz;AC110V±10%, 50/60Hz.

* Input power: 250W;

* Ultrasonic cleaner power: 100W;

* Simulated RPM range: 109990rpm; step: 10rpm;

* Time range: 19999s;

* Pulse width: 0.525ms; step 0.1 ms;

* Fuel tank capacity: 4700ml;

* Dimensions: 385mm×410mm×500mm;

* Weight: About 35kg

3. Feature

* Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon

deposits on the injector completely.

* Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to

monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.

* Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.

* Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.

* Auto. test: To test injectors by simulating different working conditions.

* On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning

  on the injectors on vehicle.
